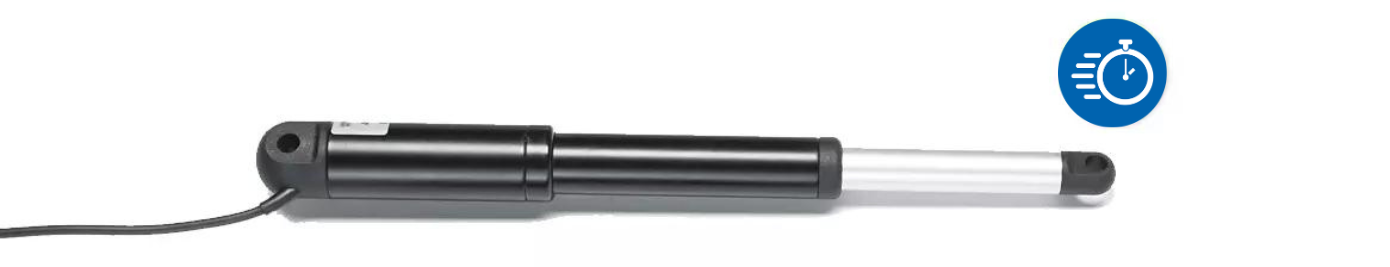

Quick ship actuators
Electric linear actuators are customer-specific and can be ordered via sales@bibus.nl or 0252-433733.
Our complete range of actuators offers the greatest possible flexibility: actuators in every size, power and specification. If time is a determining factor, you can always opt for the Quick Ship actuators from the easyE-35 series.

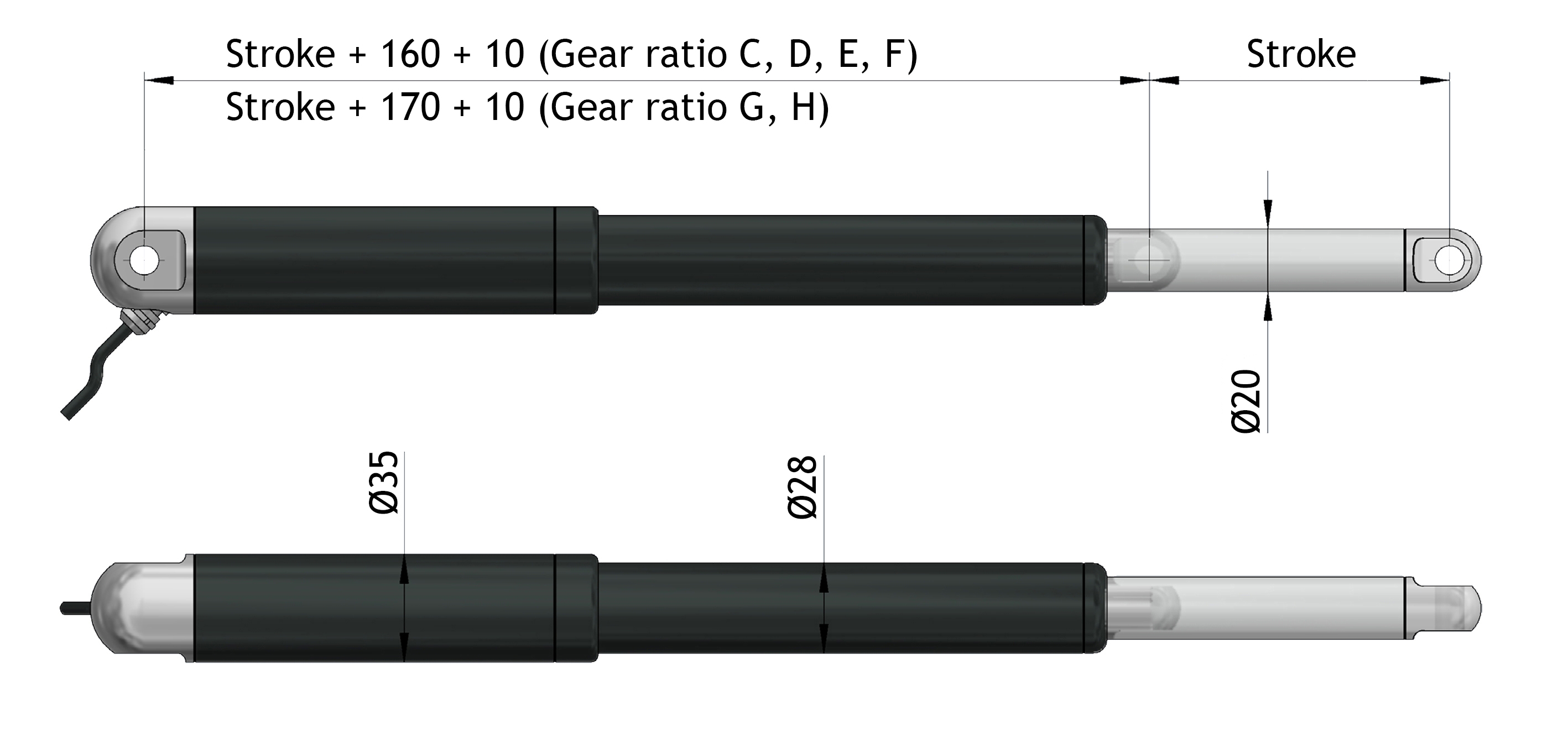

The Quick Ship actuators are standard actuators for which the stroke is predetermined. You can choose a stroke of 50, 100, 150, 200, 250, 300, 350, 400 and 500 mm. The Quick Ship actuators are available in various forces and speeds.
Properties Quick Ship actuators
- power supply: 24 VDC
- cable length: 3m
- aluminum connectors: A1K / A1M
- with Hall sensor
- with Molex connector
- protection class: IP66
- temperature: -5 ° C - 70 ° C
Your benefits:
- shorter delivery times;
- usual Bansbach quality;
- put together your actuator yourself.
| Gear ratio | ||||||
|---|---|---|---|---|---|---|
| C | D | E | F | G | H | |
| Stroke length 50 - Article number | EEL-35-50-C | EEL-35-50-D | EEL-35-50-E | EEL-35-50-F | EEL-35-50-G | EEL-35-50-H |
| Stroke length 100 - Article number | EEL-35-100-C | EEL-35-100-D | EEL-35-100-E | EEL-35-100-F | EEL-35-100-G | EEL-35-100-H |
| Stroke length 150 - Article number | EEL-35-150-C | EEL-35-150-D | EEL-35-150-E | EEL-35-150-F | EEL-35-150-G | EEL-35-150-H |
| SStroke length 200 - Article number | EEL-35-200-C | EEL-35-200-D | EEL-35-200-E | EEL-35-200-F | EEL-35-200-G | EEL-35-200-H |
| Stroke length 250 - Article number | EEL-35-250-C | EEL-35-250-D | EEL-35-250-E | EEL-35-250-F | EEL-35-250-G | EEL-35-250-H |
| Stroke length 300 - Article number | EEL-35-300-C | EEL-35-300-D | EEL-35-300-E | EEL-35-300-F | EEL-35-300-G | EEL-35-300-H |
| Stroke length 350 - Article number | EEL-35-350-C | EEL-35-350-D | EEL-35-350-E | EEL-35-350-F | EEL-35-350-G | EEL-35-350-H |
| Stroke length 400 - Article number | EEL-35-400-C | EEL-35-400-D | EEL-35-400-E | EEL-35-400-F | EEL-35-400-G | EEL-35-400-H |
| Stroke length 500 - Article number | EEL-35-500-C | EEL-35-500-D | EEL-35-500-E | EEL-35-500-F | EEL-35-500-G | EEL-35-500-H |
| C | D | E | F | G | H | |
|---|---|---|---|---|---|---|
| Maximum load (N) | 120 | 400 | 600 | 900 | 1600 | 2200 |
| Speed at maximum load (mm/s) | 33 | 16 | 12 | 7,5 | 4 | 3 |
