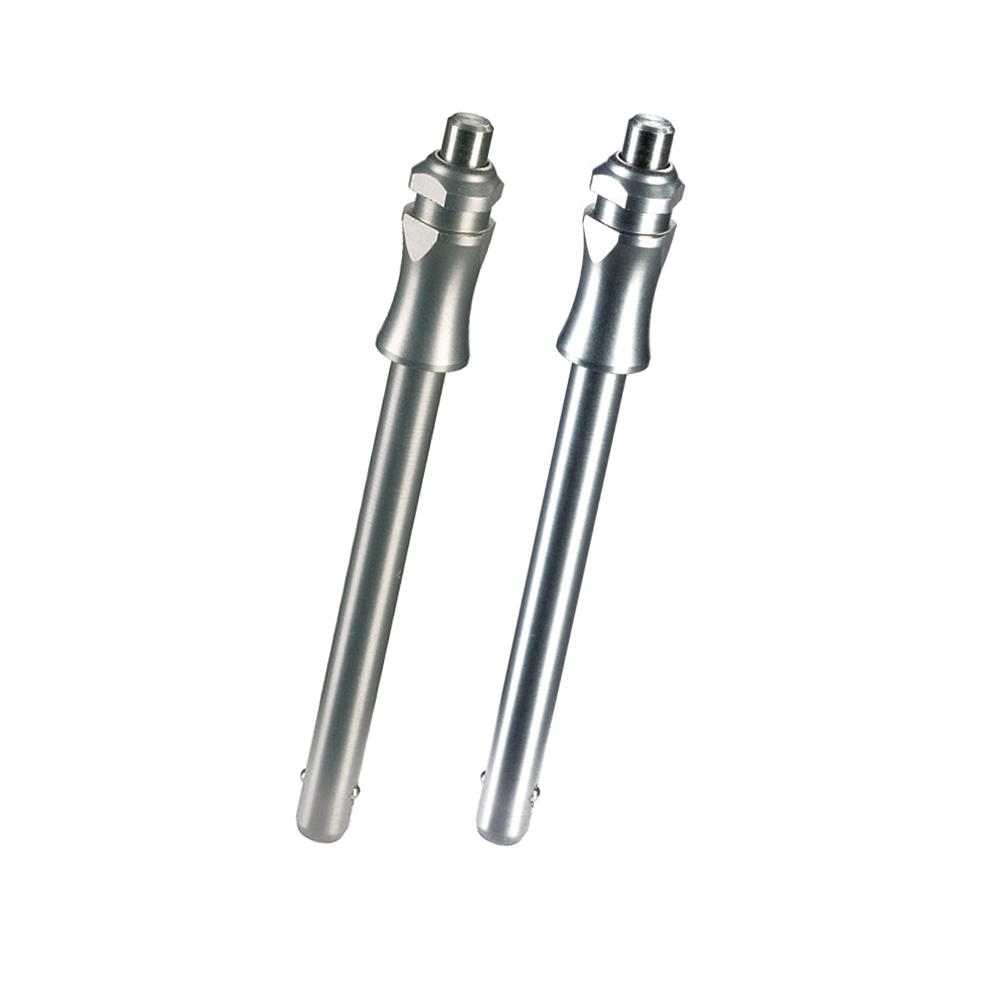

Ball lock pin basic version
For quick fastening, locking, adjusting, changing and securing. Quickly and easily unlockable for frequently repeated connections.
Material:
- pin part: stainless steel 303 (1.4305); precipitation-hardened stainless steel 630 (1.4542); Titanium;
- spring: stainless steel; corrosion resistent alloy.
Characteristics:
- all versions are corrosion resistant;
- temperature range up to 250°C; temperature range for the Titanium range up to 400°C;
- when using stainless steel 630 (1.4542): high-strength, hardened, abrasion resistant pin with high load capacity;
- F(kN) in the table stands for the minimal shearing resistance, double;
- for use bores H11 are adequate;
- bore H11 is equal to dimension D1 in the table;
- as an accessory locating bushes (AP11) are available;
- mounting option for fixing cable (AP12);
- compact design with recessed grip;
- Titanium version over 40% lighter than steel;
- version stainless steel 630 (1.4542) is marked.
Art. Nr. |
d |
l |
Material |
2D/3D |
Order unit |
Sample |
Delivery time |
Order |
Art. Nr. |
d |
l |
Material |
2D/3D |
Order unit |
Sample |
Delivery time |
Order |
|
