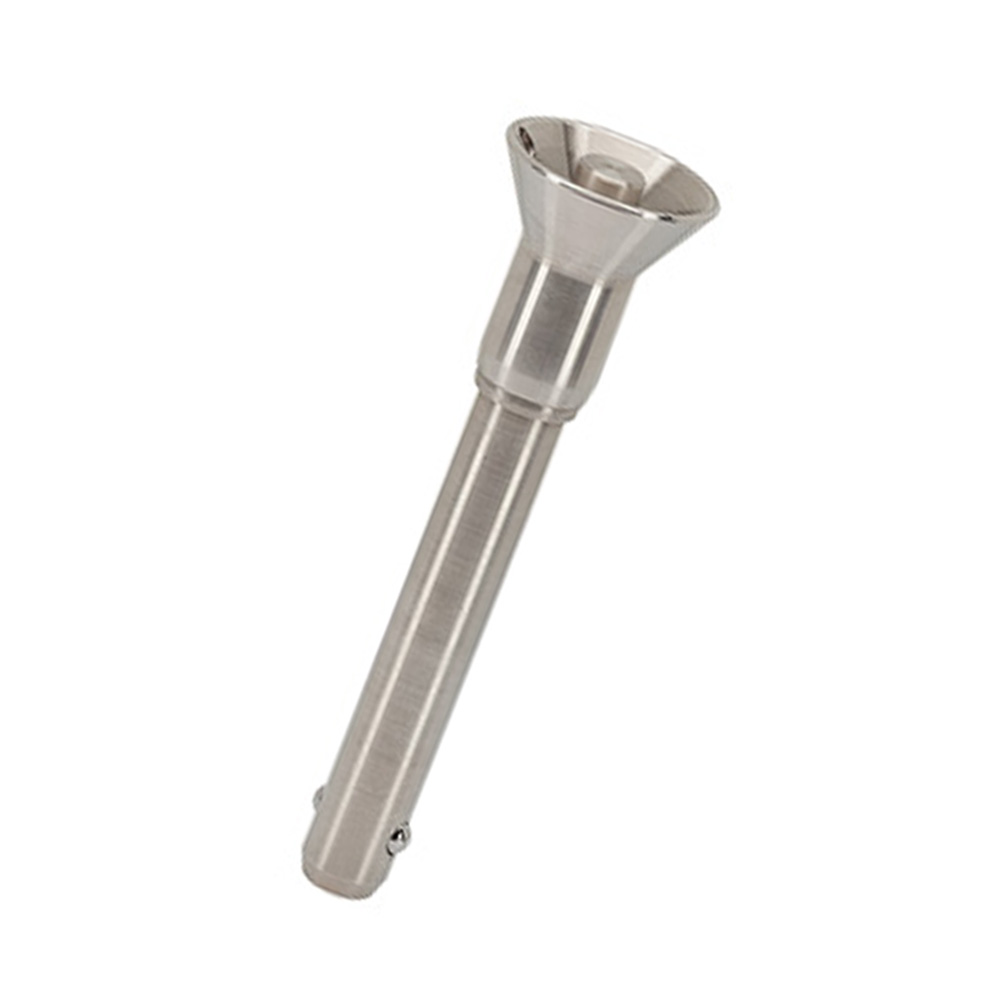

Ball lock pin with safety handle
For quick fastening, locking, adjusting, changing and securing. Quickly and easily unlockable for frequently repeated connections.
Material:
- pin part: stainless steel 1.4305; precipitation-hardened stainless steel 1.4542;
- spring: stainless steel;
- handle: stainless steel;
- press button: stainless steel.
Characteristics:
- all versions are corrosion resistant;
- temperature range up to 250°C;
- when using hardened stainless steel 1.4542: abrasion resistant pin with high load capacity;
- for use bores H11 are adequate;
- bore H11 is equal to dimension D1 in the table;
- as an accessory locating bushes (AP11) are available;
- F(kN) in the table stands for the minimal shearing resistance, double;
- robust safety handle (press button not overlaying);
- shape of grip protects from unintentional use of the press button;
- mounting option for fixing cable (AP12);
- version stainless steel 630 (1.4542) is marked.
Art. Nr. |
d |
l |
Material |
2D/3D |
Order unit |
Sample |
Delivery time |
Order |
Art. Nr. |
d |
l |
Material |
2D/3D |
Order unit |
Sample |
Delivery time |
Order |
|
