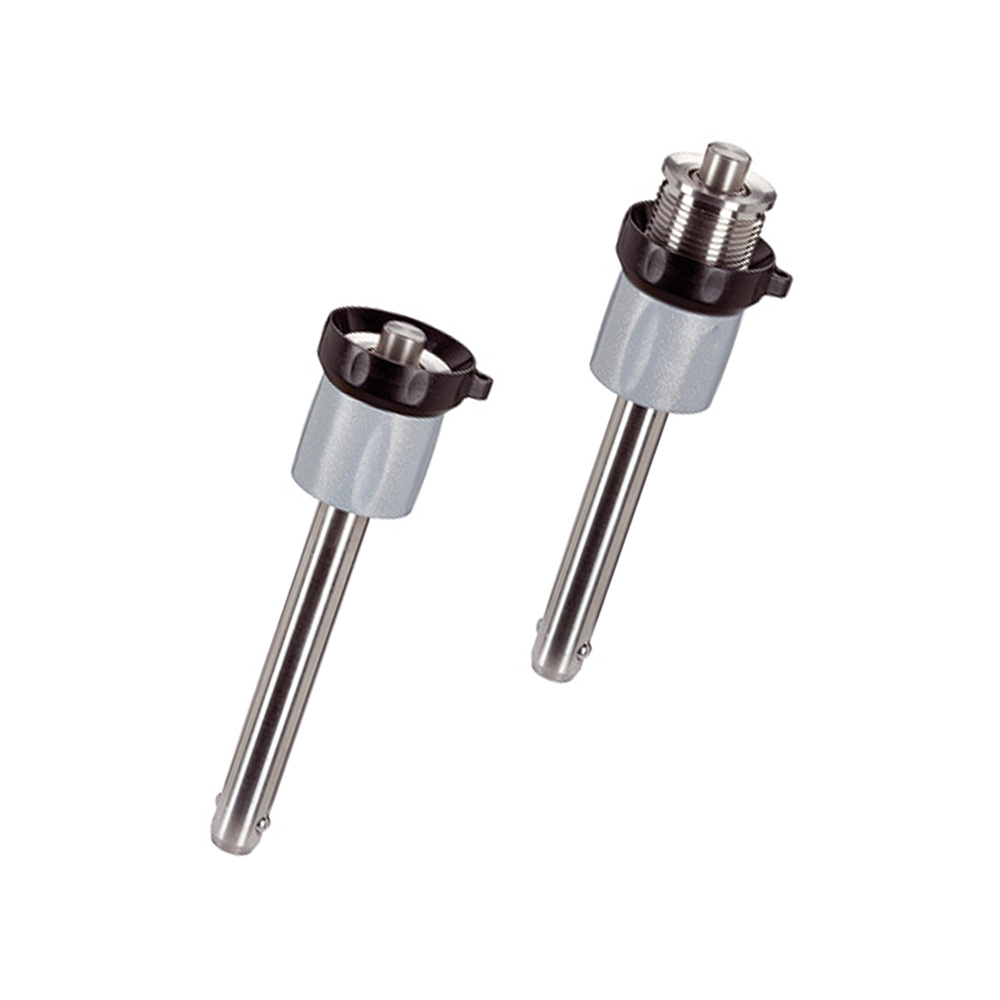

Ball lock pins with adjustable clamping span
Used for mounting or clamping work pieces, remove remaining play or slack via variable locknuts.
Material:
- pin part: stainless steel 303 (1.4305); precipitation-hardened stainless steel 630 (1.4542);
- adjusting nut: Thermoplastic (PA 6), silver;
- lock nut: Thermoplastic (PA 6), black;
- spring: stainless steel.
Characteristics:
- all versions are corrosion resistant;
- when using stainless steel 1.4542: high-strength, hardened, abrasion resistant pin with high load capacity;
- mounting option for fixing cable (AP12);
- for use bores H11 are adequate;
- bore H11 is equal to dimension D1 in the table;
- as an accessory locating bushes (AP11) are available;
- F(kN) in the table stands for the minimal shearing resistance, double*;
- *shearing resistance similar to DIN 50141;
- temperature range from -30°C up to 80°C;
- version stainless steel 1.4542 is marked.
Art. Nr. |
d |
l |
Material |
2D/3D |
Order unit |
Sample |
Delivery time |
Order |
Art. Nr. |
d |
l |
Material |
2D/3D |
Order unit |
Sample |
Delivery time |
Order |
|
