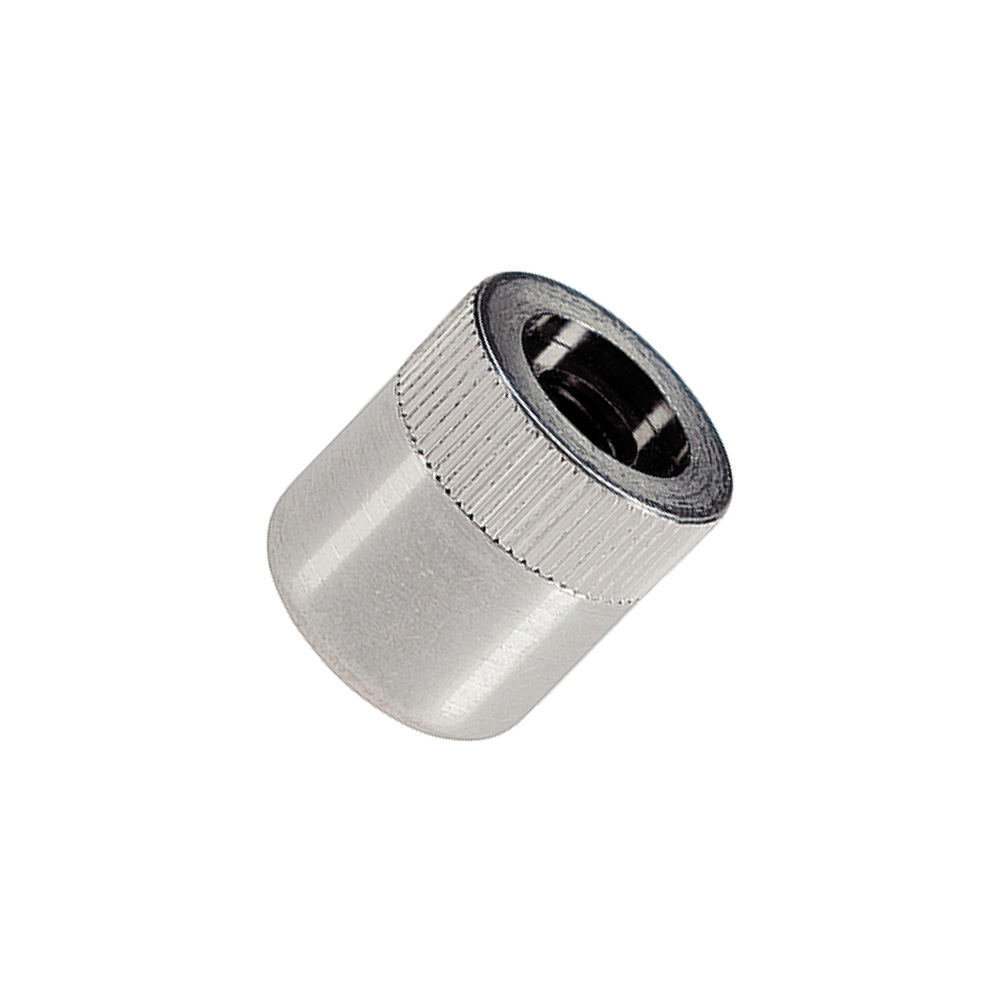

Lateral plunger with female thread INCH
Material:
- body: aluminum;
- threaded washer: steel, blackened;
- spring: stainless steel; steel, blackened; steel+, galvanized.
Characteristics:
- spring: stainless steel, light spring load; steel, standard spring load; steel+, heavy spring load;
- assembly: installation by pressing in;
- to be used for positioning and applying pressure;
- without seal;
- individual set screws can be screwed in the plate with threaded hole;
- F (N) and F1 (N) in the table is the (maximum) average statistical value of the spring force in pounds (lb);
- temperature range to a maximum of 250°C.
Formula:
Formula for calculating the center distance for the mounting hole:
- L3 = L5/2 + L6 + L1;
- L3 = center distance;
- L4 = work piece height;
- L6 = work piece length;
- L8 = stroke;
- L5 = stop diameter;
Calculation dimension L1 for workpieces: L1 = d/2 - L1.
