Locating bushing ball lock pin with flange

Material:

• stainless steel (1.4305).

Characteristics:

• used for thin sheet materials;
• locating bushings are used for quick and safe locating of ball lock pins AP01, AP02, AP03, AP04, AP06, AP07, AP08, AP09, AP14, AP16 and AP18;
• the contact surface of the flange ensures optimum force distribution at components with thin walls;
• all versions are corrosion and abrasion resistant;

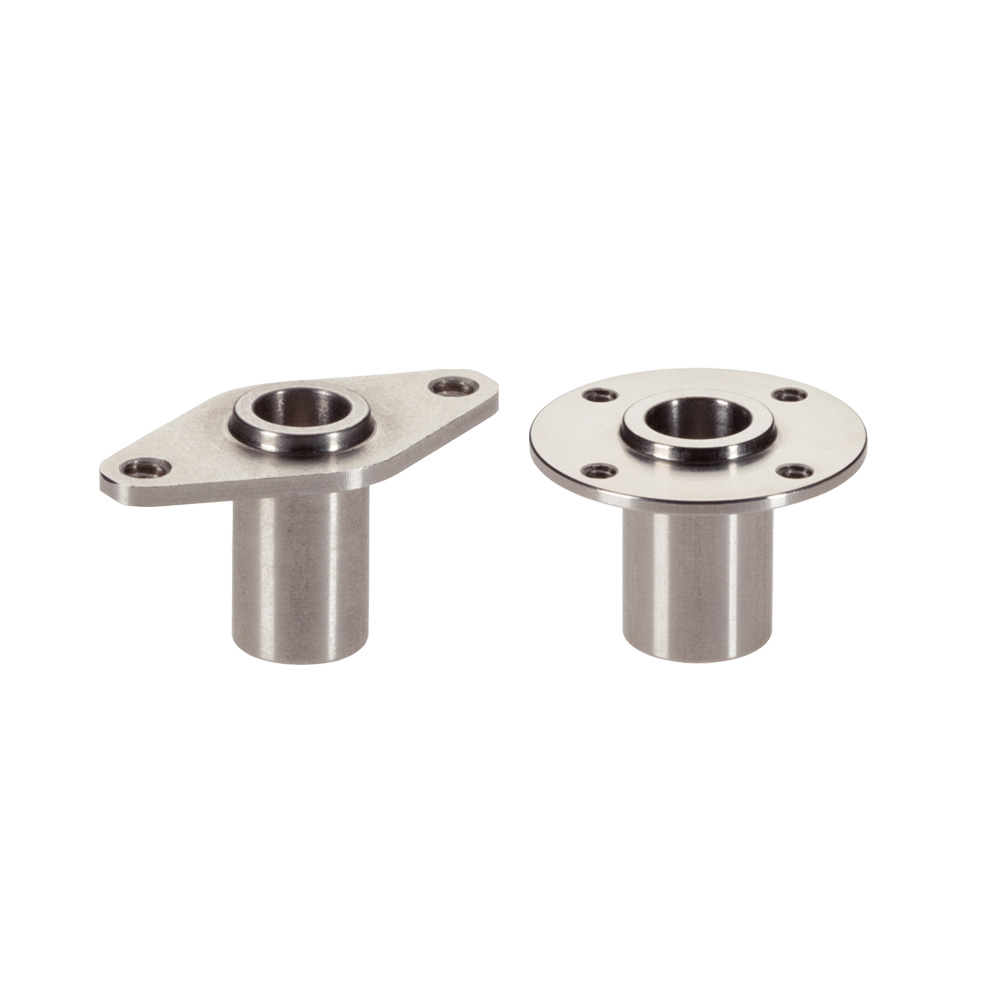

• type 1: with oval flange; type 2: with round flange.
