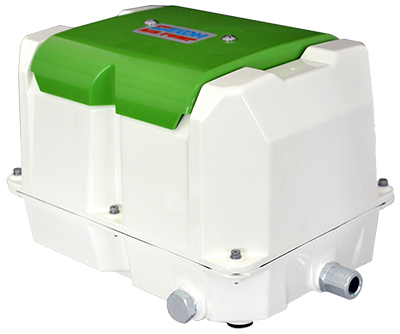

Secoh JDK-S-300>500 Air pumps
Our JDK Series air pumps are designed to deliver consistent airflow, quiet operation, and energy efficiency, making then an excellent choice for a wide range of applications. With a compact and lightweight design, they are easy to install and maintain while providing dependable permormance.
| Model | Airflow(L/min) | Power consumption (W) | Sound lever (dB) | Pressure (kPa) |
|---|---|---|---|---|
| JDK-S-300 | 300 | 220 | 52 | 20 |
| JDK-S-400 | 400 | 350 | 54 | 20 |
| JDK-S-450 | 450 | 390 | 55 | 20 |
| JDK-S-500 | 500 | 450 | 56 | 20 |
Key Features:
- Long Life Expectancy: The integrated motor and pump design ensures a prolonged operational lifespan, providing reliable service over time.
- High Efficiency: Utilizing electromagnetic oscillation with minimal mechanical friction, these pumps achieve high efficiency and reduced power consumption.
- Low Noise and Vibration: A soundproof casing and integrated muffler minimize operating noise, while vibration-isolating rubber components reduce vibration levels.
- Oil-Free Operation: Ensures a dry and uncontaminated airflow, suitable for sensitive environments.
- Pulsation-Free Airflow: Specially designed pump chambers and an integrated muffler provide a nearly pulsation-free airflow.
- Weatherproof: The JDK series is rainproof and weatherproof; however, they should not be exposed to direct sunlight, rain, or snow.
Product Characteristics:
- Compact Design: Smaller dimensions for easy installation in limited spaces.
- Low Energy Consumption: Designed for energy efficiency, reducing operational costs.
- Protective Switch Inclusive: Enhances safety during operation.
- LED Service Light (Cable Option): Provides visual indicators for maintenance needs.
- Connecting Hose Included: Simplifies installation with necessary accessories.
- Aluminium Housing: Durable construction for extended service life.
Installation Tips:
- Ensure the air pump receives a clean, fresh air supply.
- If a previous pump has failed, check the back pressure on the pump; pressure gauges are available for this purpose.
- Protect the pump from potential flooding; while rainproof, it is not waterproof.
- Maintain tubing pipe diameter close to the pump outlet to reduce artificial pressure and extend diaphragm life.
- For aquatic applications with small-bore manifolds, keep at least one tap fully open to alleviate pressure from air stones.
- Clean the filter regularly—at least annually, or more frequently if dirt ingress is suspected.
