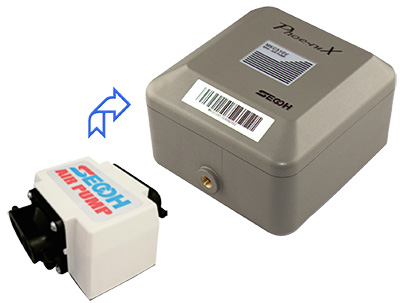

Secoh MK-10 & MKC510V Air pumps
Our MK Series air pumps are designed to deliver consistent airflow, quiet operation, and energy efficiency, making then an excellent choice for a wide range of applications. With a compact and lightweight design, they are easy to install and maintain while providing dependable permormance.
| Model | Airflow (L/min) | Power consumption (W) | Sound lever(dB) | Pressure (kPa) |
|---|---|---|---|---|
| MK-10 | 10 | 9 | 38 | 10 |
| MKC510V | 10 | 9 | 30 | 10 |
Key Features
- Long Life Expectancy – The unified construction of motor and pump components ensures extended operational life and dependable service.
- High Efficiency – Utilizing electromagnetic oscillation with minimal mechanical friction, these pumps achieve superior efficiency and reduced power consumption.
- Low Noise and Vibration – A soundproof casing and integrated muffler minimize operating noise, while vibration-isolating rubber components reduce vibration levels.
- Oil-Free Operation – Ensures a dry and uncontaminated airflow, suitable for sensitive environments.
- Pulsation-Free Airflow – Specially designed pump chambers and an integrated muffler provide a nearly pulsation-free airflow.
- Weatherproof – The MK series is rainproof and weatherproof; however, they should not be exposed to direct sunlight, rain, or snow.
Product Characteristics
- Compact Design – Smaller dimensions facilitate easy installation in confined spaces.
- Low Pressure Alarm Activation – The built-in alarm activates below 7 kPa, alerting users to potential issues promptly.
- Protective Auto-Stopper Switch – Enhances safety during operation by preventing potential damage.
- Low Energy Consumption – Designed for energy efficiency, reducing operational costs.
- Connecting Hose Included – Simplifies installation with necessary accessories.
- Aluminium Housing – Durable construction ensures extended service life.
Installation Tips
- Ensure the air pump receives a clean, fresh air supply.
- If a previous pump has failed, check the back pressure on the pump; pressure gauges are available for this purpose.
- Protect the pump from potential flooding; while rainproof, it is not waterproof.
- Maintain tubing pipe diameter close to the pump outlet to reduce artificial pressure and extend diaphragm life.
- For aquatic applications with small-bore manifolds, keep at least one tap fully open to alleviate pressure from air stones.
- Clean the filter regularly—at least annually, or more frequently if dirt ingress is suspected.
