Mini gas springs

Even for the smallest of applications, we offer a nice range of mini gas springs that suit almost any application. The small sizes 3/8 mm, 3/10 mm, and 4/12 mm are especially suited for applications with limited space. For instance, the space required for the piston rod is only 3 or 4 mm, and the cylinder diameter is available in 8, 10, or 12 mm.

Thanks to the CeramPro® piston rod, these small gas springs are extremely corrosion-resistant, have low friction values, and have optimum operating characteristics.

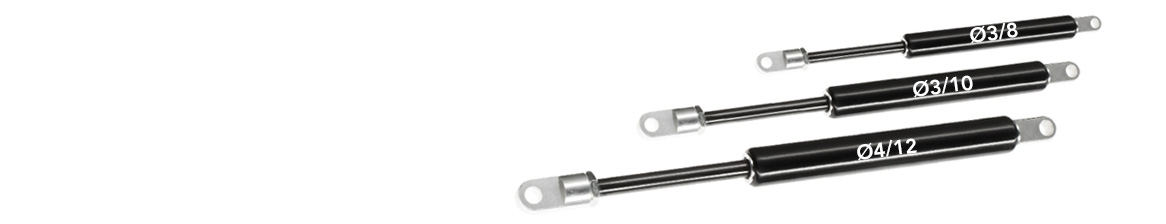

Mini gas spring 3/8

• piston rod: diameter of 3 mm;
• cylinder: diameter of 8 mm;
• stroke: 10-120 mm;
• extended length EL1: stroke x 2 + 26;
• extension force: 7-110N.

Mini gas spring 3/10

• piston rod: diameter of 3 mm;
• cylinder: diameter of 10 mm;
• stroke: 10-120 mm;
• extended length EL1: stroke x 2 + 26;
• extension force: 7-110N.

Mini gas spring 4/12

• piston rod: diameter of 4 mm;
• cylinder: diameter of 12 mm;
• stroke: 10-150 mm;
• extended length EL1: stroke x 2 + 30;
• extension force: 7-200N.

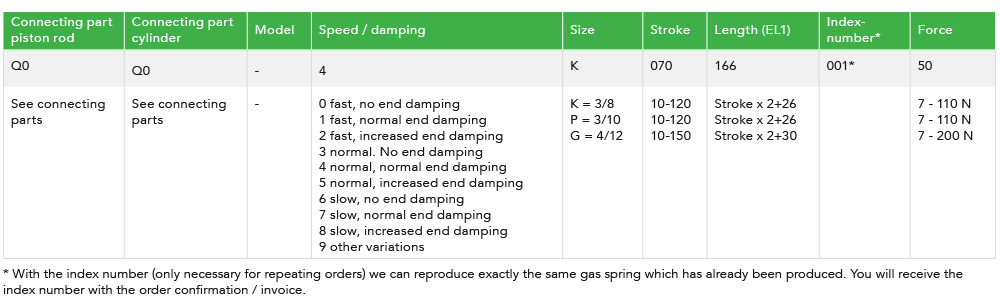

Custom mini gas springs

We produce our smallest gas springs exactly according to your requirements. Stroke, total length, force, and mounting parts can all be adapted to your application. In addition, all sizes are available with damping.a
