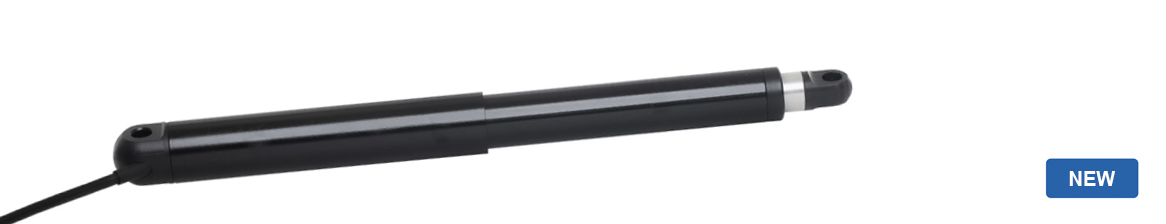

EasyE-25
Features:
- Stroke: 50, 100, 150, 200, 250mm
- Cable: 1m, 2X0.50mm² (AWG20), Ø=4.8mm, black, Molex Mini-Fit Jr. 6 pin
- Bending radius: 6x cable diameter
- Material: Motor and actuator tube are powder coated aluminium. Piston rod is aluminium, Front and rear brackets are PA
- Power supply: 12/24VDC, see specifications
- Protection class: IP66 (Standard)
- Max. static load / PA Brackets: 1000N, self locking force: Depending on stroke length for push-applications
Max. Load to 250N for stroke > 250mm - Temperature: -20°C to +70°C. Storage: -40ºC to +70ºC
- Duty cycle: Max. 10% or 2 minutes in use followed by 18 minutes rest.
Speed and Force
| Gear ratio | C | D | E |
|---|---|---|---|
| EasyE-25 (12/24VDC power supply, permanent magnet motor) | |||
| Force 24V (dyn. push and pull) (N) | 110 | 310 | 370 |
| Speed at maximum load (mm/s) | 5 | 2 | 1,5 |
| Current at maximum load: 12VDC (max 14 VDC) = 0,7A, 24VDC (max 28 VDC) = 0,4A | |||
| EasyE-35 | |
| Gear ratio: C, D, E | Stroke +170 |

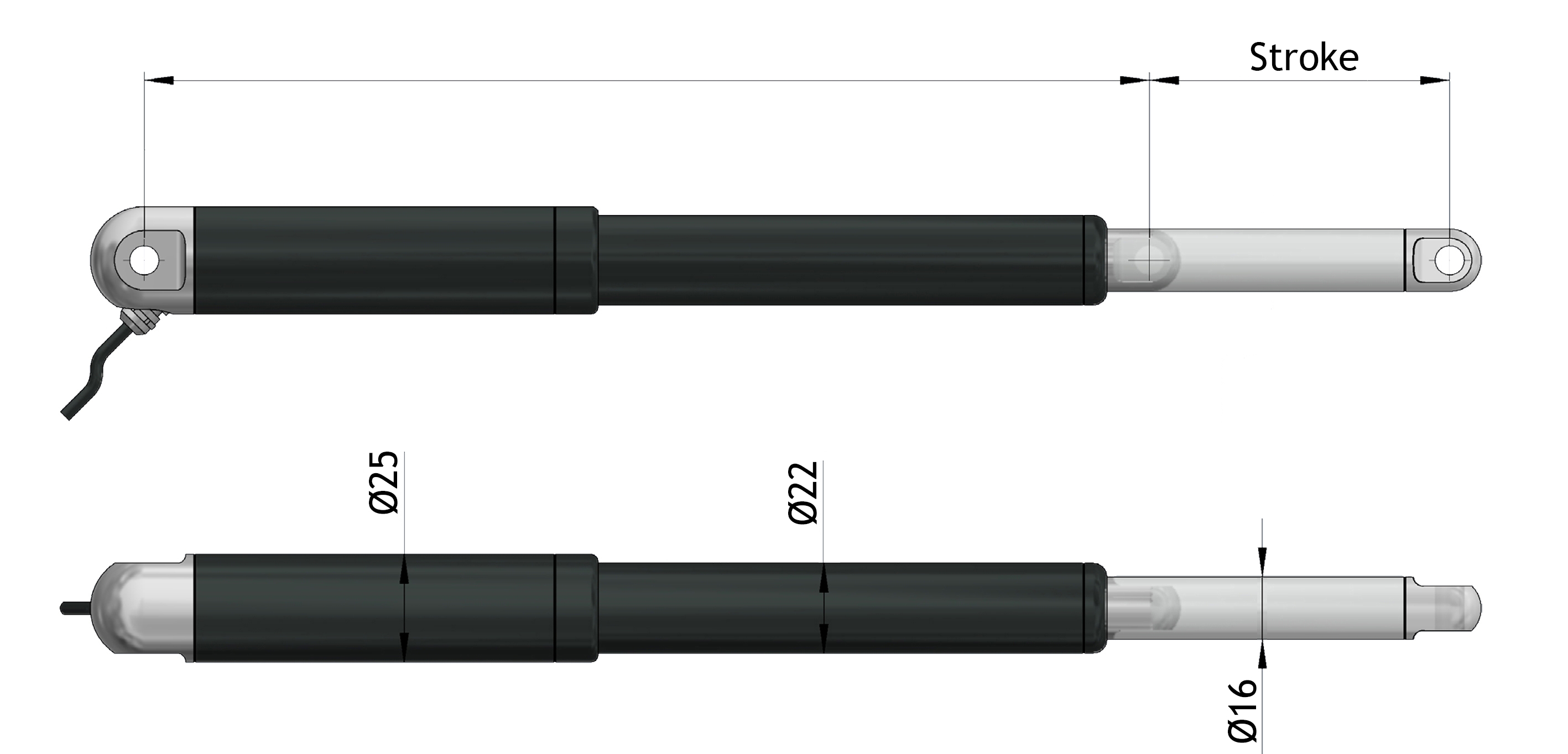

Dimensions
Axial backlash: +/-0,5mm, General dimensional variation: +/-1mm

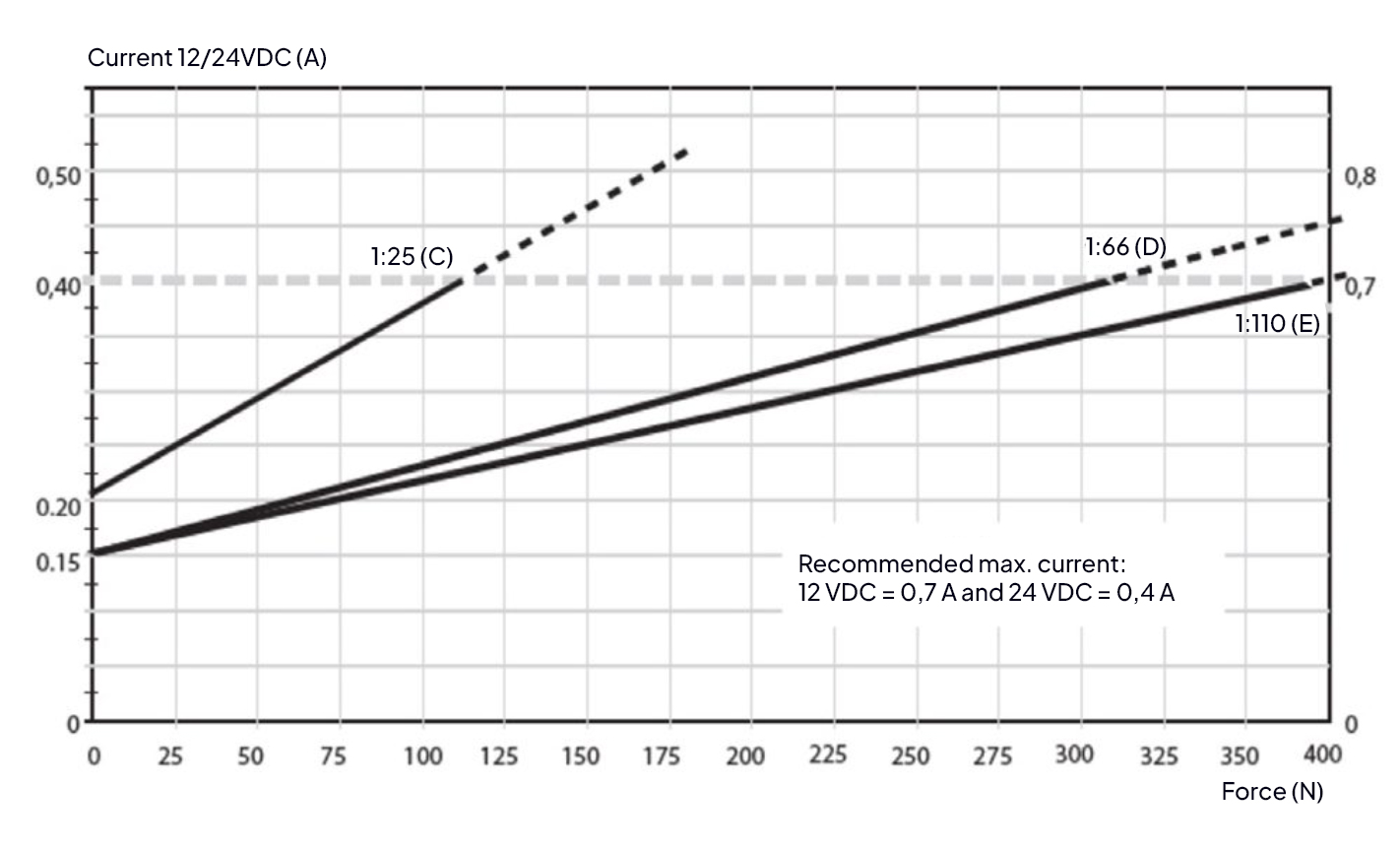

Force/Current (12/24VDC)

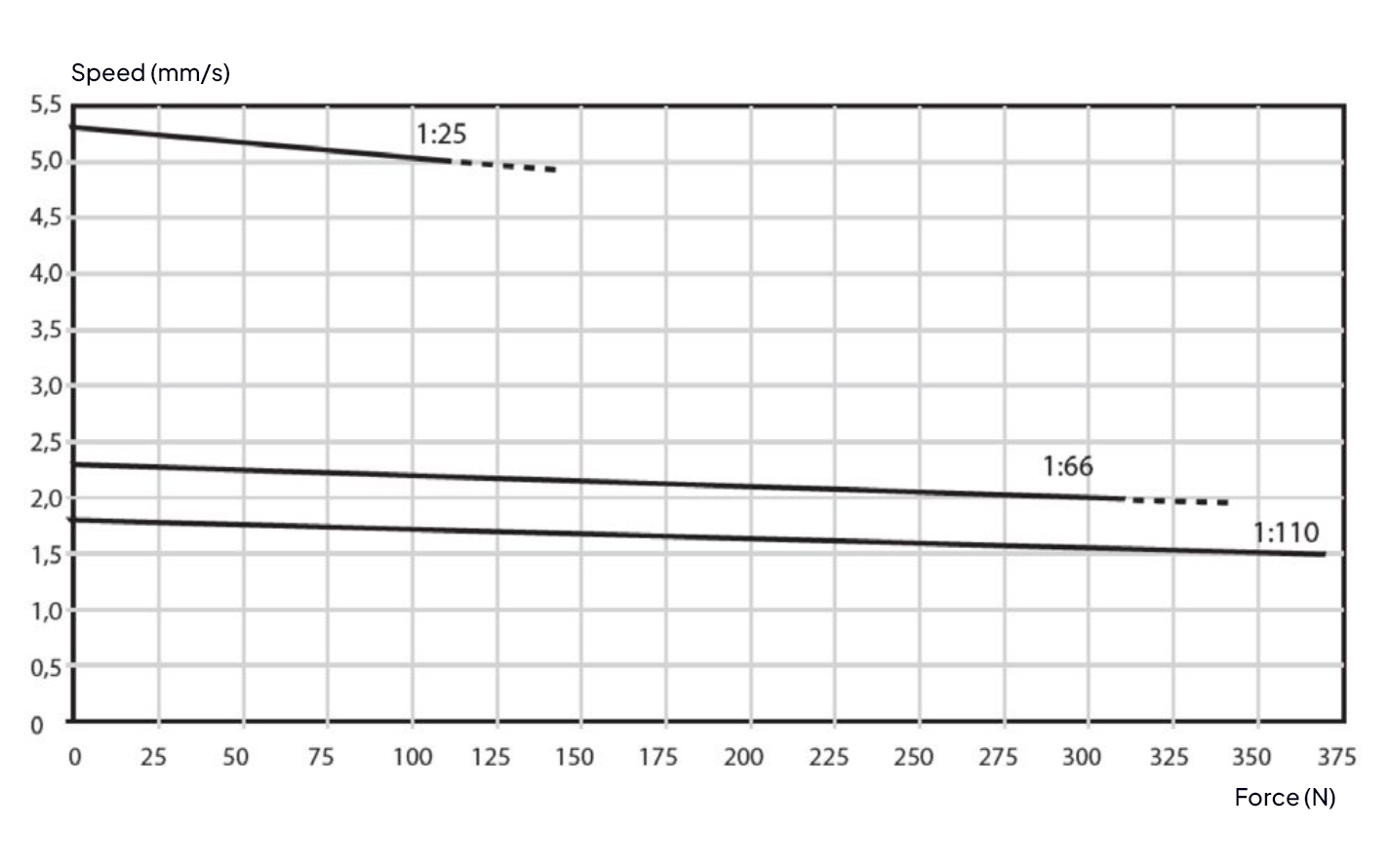

Speed/Force (12/24VDC)
Connecting Parts
Hinge eye "Motor-Side"
Code: B0M
Material: Polyamid (PA)
Max. static load: 1000N
Hinge eye "Piston-rod-Side"
Code: B0K
Material: Polyamid (PA)
Max. static load: 1000N
PLEASE NOTE
- Power supply without over-current protection can cause serious damage to the actuator at mechanical end-stop or when actuator is overloaded in another way
- Radial forces might have an adverse affect on the performance or lead to damage of the actuator
- Keep piston tube clean
- Longer cable lengths may cause voltage drop which affects the performance of the actuator
- For medical applications (IEC60601-1, ANSI/AAMI/ES60601-1, CAN/CSA-C22.2 No60601-1): Operating temperature +5ºC to +48ºC, Relative humidity 20% - 70% atmospheric pressure = 1atm. Connect to medically approved supply source only and according to guidelines provided with the source
- The dust and water sealing of "harsh environment" actuators might affect their performance
- All specifications are for 25 ºC ambient – low temperature might affect performance
- Depending on load and application, nominal and actual stroke length may differ due to internal disc springs not being fully compressed
- The combination of gearing and stroke can cause limitations in the use of „End limit FW“ when using the S2-3 controller. See more in the datasheet for S2-3.
