EasyE-50
FEATURES:
- Stroke: 50, 100, 150, 200, 250, 300, 350, 400, 500 and 750mm (others on request) Note!: From stroke ≥400 limited force
- Materials:
Motor and actuator tube are powder coated steel or stainless steel
Piston rod is stainless steel
Front and rear brackets are PA, Aluminium or stainless steel - Protection class: IP66 (standard), harsh environment (according IP68 and IP69)
- Power supply: 12/24VDC, see specifications
- Temperature:
Operation: -20ºC to +70ºC
Storage: -40ºC to +70ºC - Cable: 1m, 2X1.3mm² (AWG16), Ø=6.4mm, black, Molex Mini-Fit Jr. 6 pin see specifications
- Bending radius: 6x cable diameter
- Max. static load/Self locking force: PA brackets: 4700N Alu/AISI: 16800N, depending on stroke length for push-applications
- Duty cycle: Max. 10% or 2 minutes in use followed by 18 minutes rest
View the options for controlling and mounting the easyE-50 actuator.
CAD-Configurator
Configure quick and simply the CAD files of your easyE-50. CONFIGURATE >>
SPEED AND FORCES
| Gear ratio | C* | D | E | F | G | H |
|---|---|---|---|---|---|---|
| EasyE-50 (12/24VDC power supply, permanent magnet motor) | ||||||
| Force 24V (dyn. push and pull) (N)** | 500 | 1750 | 2200 | 3100 | 4500 | 4500 |
| Speed at maximum load (mm/s) | 70 | 20 | 17 | 12 | 6 | 4 |
| Force 12V (dyn. push and pull) (N)** | - | 1400 | 1700 | 2400 | 4500 | 4500 |
| Speed at maximum load (mm/s) | - | 14 | 10 | 6 | 3 | 3,5 |
Current at maximum load: 12VDC (max 14 VDC) = 16A (ratio C-F), 14A (ratio G), 9A (ratio H), 24VDC (max 28 VDC) = 8A (ratio C-F), 7A (ratio G), 4,5A (ratio H)
* only 24V DC power supply
** Max. loadl imited for stroke length >400mm: 2000N
| EL | Clevis rear | Hall sensor | UL/EN60.601 | Harsh environment | |
|---|---|---|---|---|---|
| EasyE-50 | |||||
| Gear ratio: C, D, E, F | stroke +240* | - | +15 | +15 | +14 |
| Gear ratio: G, H | stroke +255* | - | +15 | +15 | +14 |
* stroke length >750mm: EL +100mm (on request)
* axial backlash: ±-0,5mm - generally length tolerance ±-1mm
DIMENSIONS
WEIGHT OF THE ACTUATORS
| Stroke length (mm) | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 500 | 750 |
| Weight (kg) | 2,1 | 2,3 | 2,6 | 2,8 | 3,1 | 3,3 | 3,6 | 3,8 | 4,3 | 5,6 |
Actual weight may vary depending on model and options selected.
SPEED/FORCE (12VDC)
FORCE/CURRENT (12VDC)
SPEED/FORCE (24VDC)
FORCE/CURRENT (24VDC)
CONNECTING PARTS "MOTOR-SIDE":
HINGE EYE

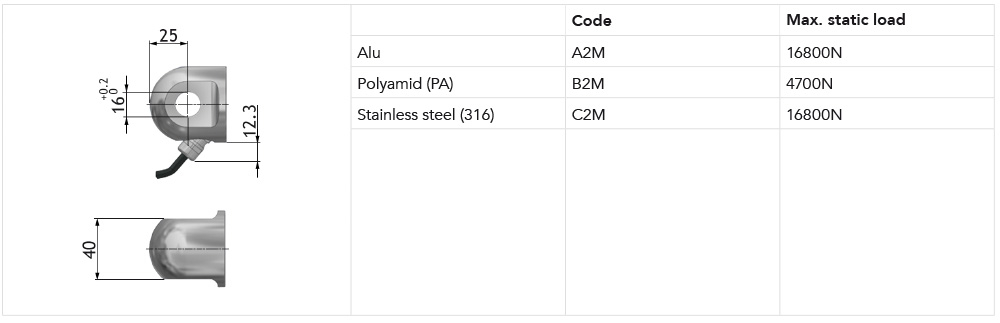

HINGE EYE WITH SPHERICAL BEARINGS

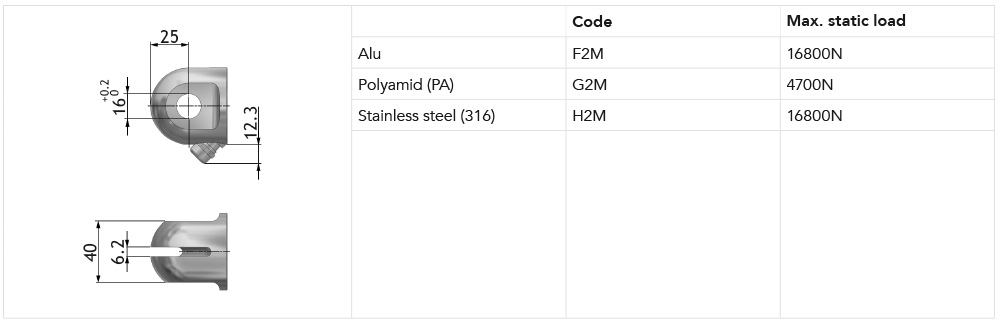

CLEVIS
CONNECTING PART "PISTON-ROD-SIDE":
HINGE EYE

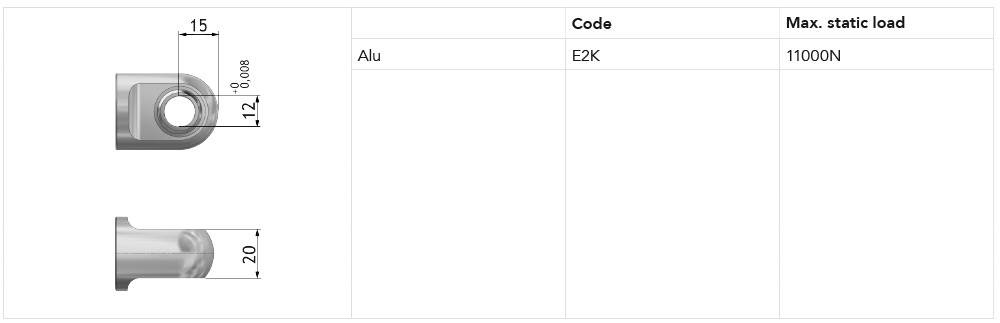

HINGE EYE WITH SPHERICAL BEARINGS

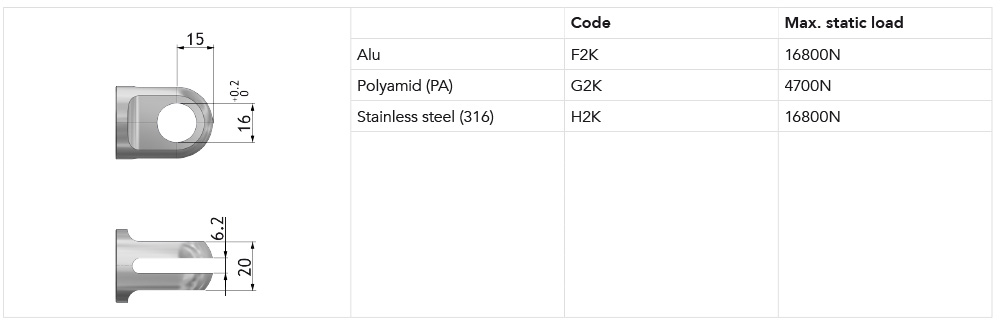

CLEVIS
RECOMMENDED MOUNTING METHODS:
- Do not clamp actuators on tubing
- Always keep both brackets mounted in the same orientation and ensure to flush mount actuator
- Brackets must always be able to rotate on axels in mountings
FOR THE FIXATION OF THE EASYE-LINE ACTUATORS WE OFFER THE FOLLOWING BRACKETS:

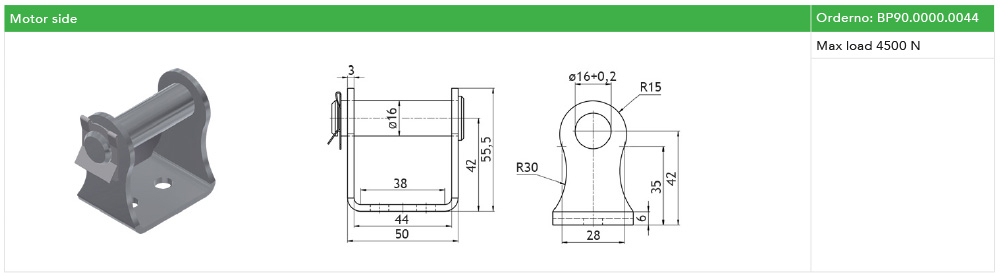

Motor side

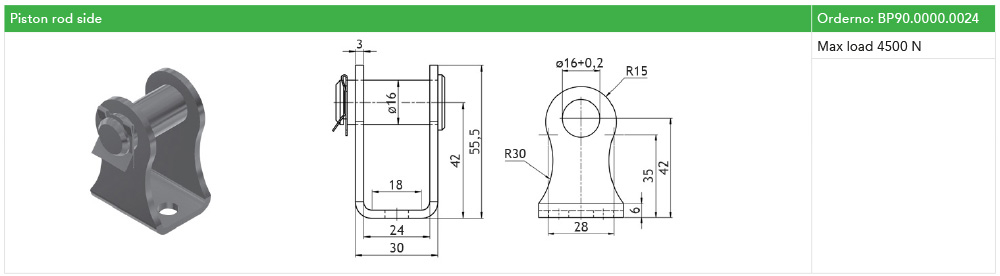

Piston rod side
PLEASE NOTE
- Power supply without over-current protection can cause serious damage to the actuator at mechanical end-stop or when actuator is overloaded in another way
- Radial forces might have an adverse affect on the performance or lead to damage of the actuator
- Keep piston tube clean
- Longer cable lengths may cause voltage drop which affects the performance of the actuator
- For medical applications (IEC60601-1, ANSI/AAMI/ES60601-1, CAN/CSA-C22.2 No60601-1): Operating temperature +5ºC to +48ºC, Relative humidity 20% - 70% atmospheric pressure = 1atm. Connect to medically approved supply source only and according to guidelines provided with the source
- The dust and water sealing of "harsh environment" actuators might affect their performance
- All specifications are for 25 ºC ambient – low temperature might affect performance
- Depending on load and application, nominal and actual stroke length may differ due to internal disc springs not being fully compressed
- The combination of gearing and stroke can cause limitations in the use of „End limit FW“ when using the S2-3 controller. See more in the datasheet for S2-3.
