EasyE-60
FEATURES:
- EasyE-60: stroke +358 mm. If the stroke is greater than 400 mm: EL +25 mm (does not apply to the harsh-environment version; If the stroke is greater than 750 mm: EL + 100 mm (on request).
- Stroke: 50, 100, 150, 200, 250, 300, 350, 400, 500 and 750mm (others on request) Note!: From stroke ≥400 limited force
- Materials:
Motor and actuator tube are powder coated steel or stainless steel
Piston rod is stainless steel
Front and rear brackets are aluminium or stainless steel - Protection class: IP66 (standard), harsh environment (according to IP68 and IP69)
- Power supply: 12/24VDC, see specifications
- Temperature:
Operation: -20°C to +50°C
Storage: -40ºC to +70ºC - Cable: 1m, 2X1.3mm² (AWG16), Ø=6.4mm, black, Molex Mini-Fit Jr. 6 pin see specifications
- Bending radius: 6x cable diameter
- Max. static load/Self locking force: 18100N, depending on stroke length for push-applications
- Duty cycle: Max. 10% or 2 minutes in use followed by 18 minutes rest
View the options for controlling and mounting the easyE-60 actuator.
CAD-Configurator
Configure quick and simply the CAD files of your easyE-60.
SPEED AND FORCE
| Gear ratio | D | E | F | G | H |
|---|---|---|---|---|---|
| EasyE-60 (12/24VDC power supply, permanent magnet motor) | |||||
| Force 24V (dyn. push and pull) (N)** | 1900 | 4300 | 6600 | 8100 | 10.000 |
| Speed at max load (mm/s) | 26 | 12 | 8 | 6 | 5 |
Current at maximum load: 24VDC (max 28 VDC) = 11,5A
* only 24V DC power supply
** Max. load limited for stroke length >400mm: 2000N
| EL | Clevis rear | Hall sensor | UL/EN60.601 | Harsh environment | |
|---|---|---|---|---|---|
| EasyE-60 | |||||
| Gear ratio: C, D, E, F, G, H | stroke +358* | - | +15 | +15 | +25 |
* stroke >400mm: EL +25mm (not harsh environment-version)
* stroke >750mm: EL +100mm (on request)
* axial backlash: ±-0,5mm - Generally length tolerance ±-1mm

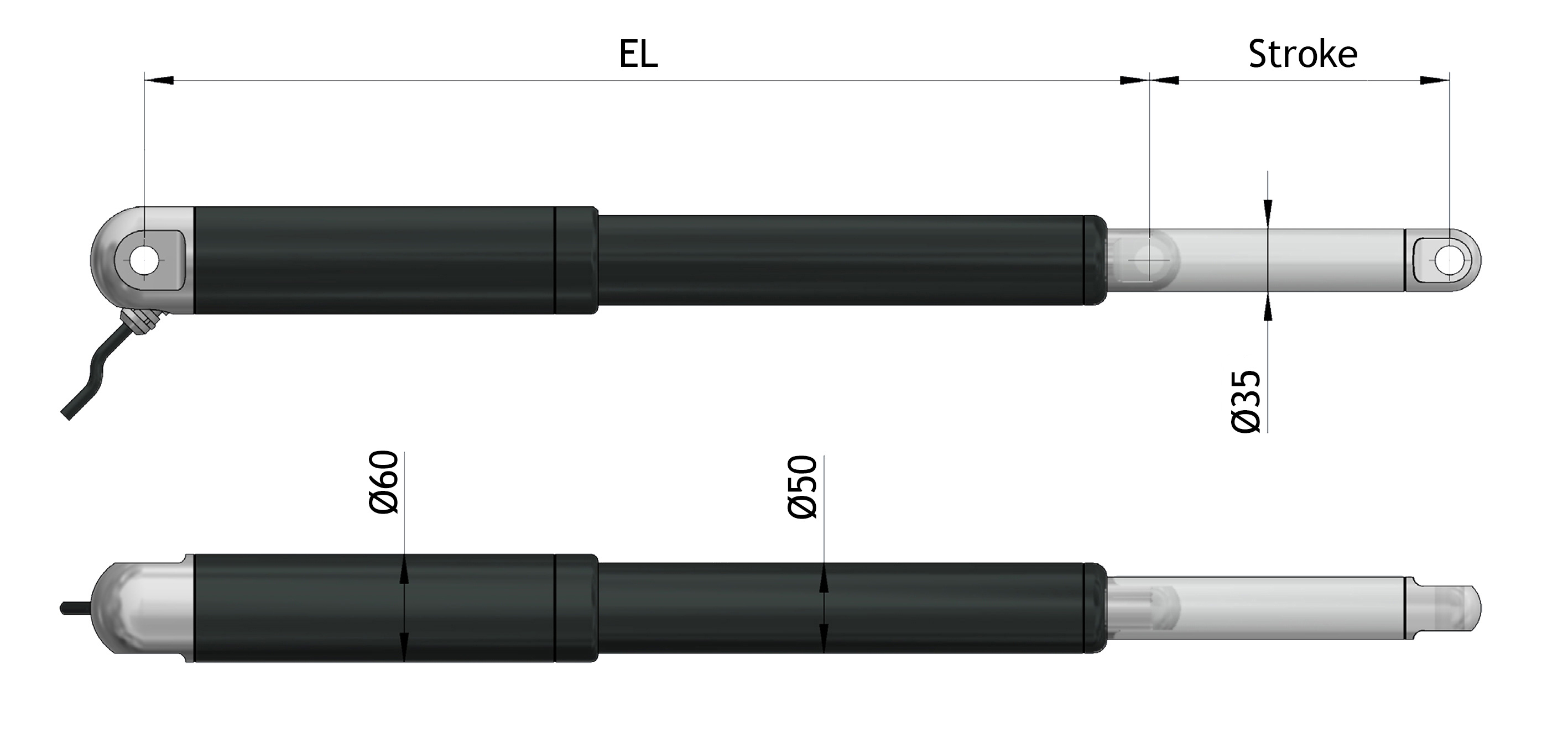

DIMENSIONS
WEIGHT OF THE ACTUATORS:
| Stroke length (mm) | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 500 | 750 |
| Weight (kg) | 4,1 | 4,4 | 4,7 | 5 | 5,3 | 5,6 | 5,9 | 6,2 | 6,8 | 7,6 |
Actual weight may vary depending on model and options selected.

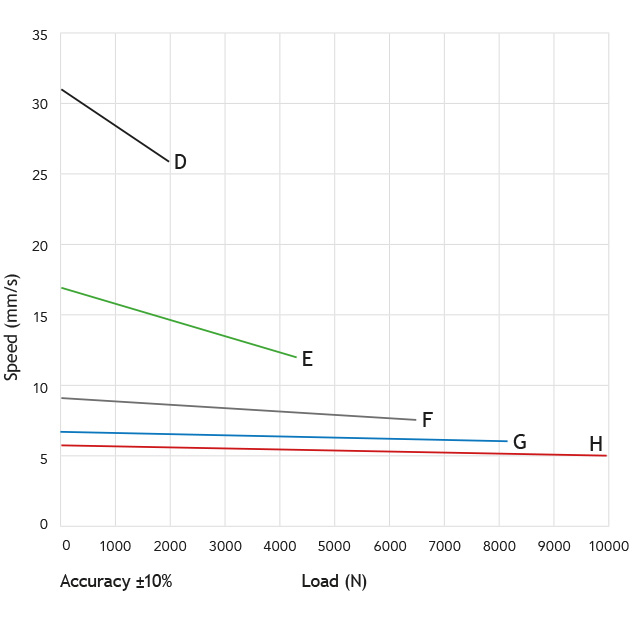

SPEED/FORCE

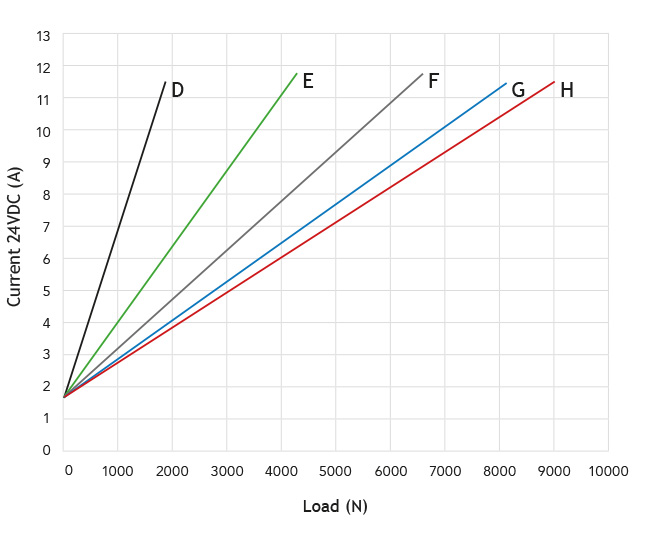

FORCE/CURRENT

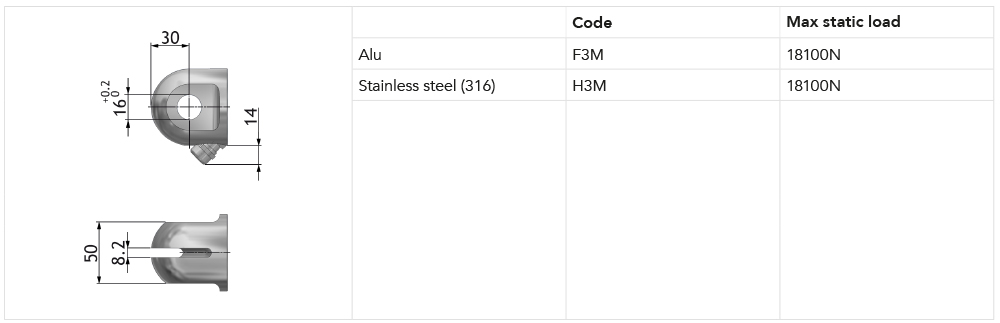

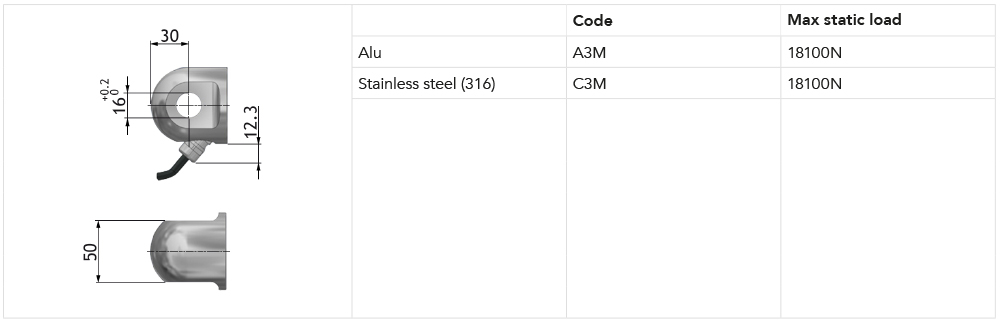

CONNECTING PARTS "MOTOR-SIDE":
HINGE EYE
CLEVIS

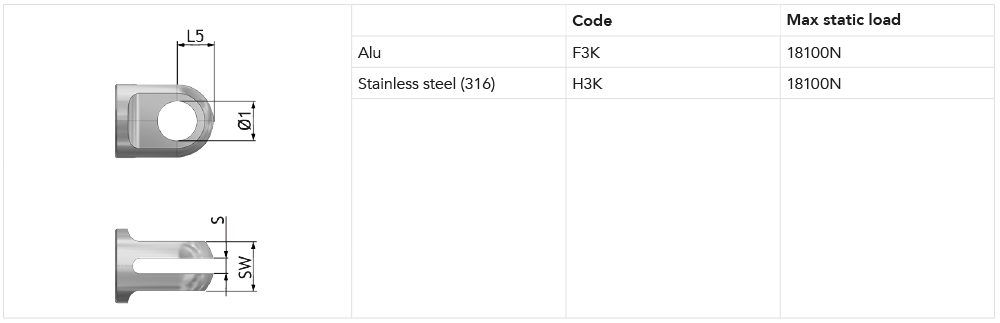

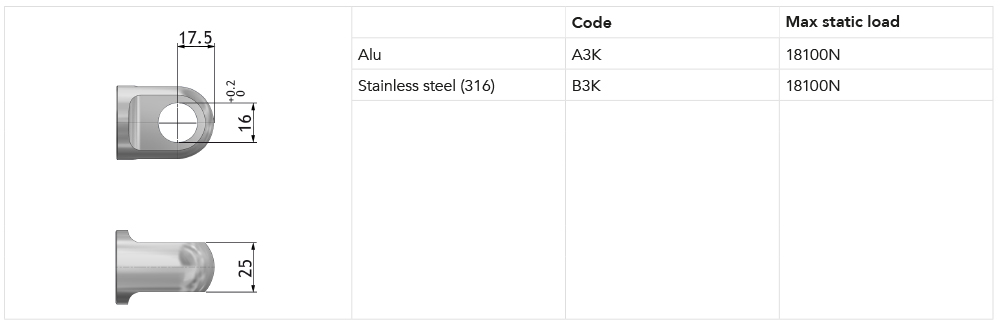

CONNECTING PART "PISTON ROD-SIDE":
HINGE EYE
CLEVIS
RECOMMENDED MOUNTING METHODS:
- Do not clamp actuators on tubing
- Always keep both brackets mounted in the same orientation and ensure to flush mount actuator
- Brackets must always be able to rotate on axels in mountings
- Avoid radial forces at all times
FOR THE FIXATION OF THE EASYE-LINE ACTUATORS WE OFFER THE FOLLOWING BRACKETS:

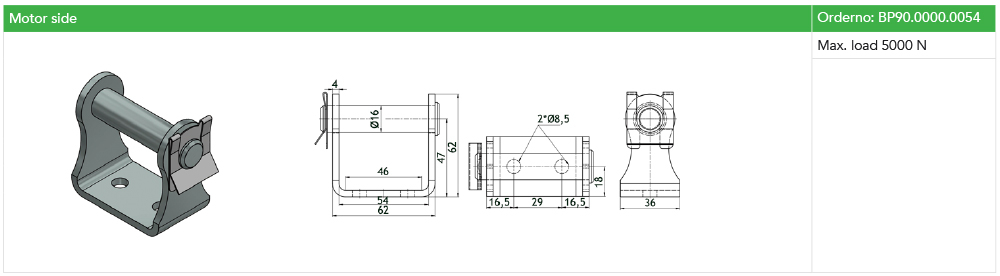

Motor side

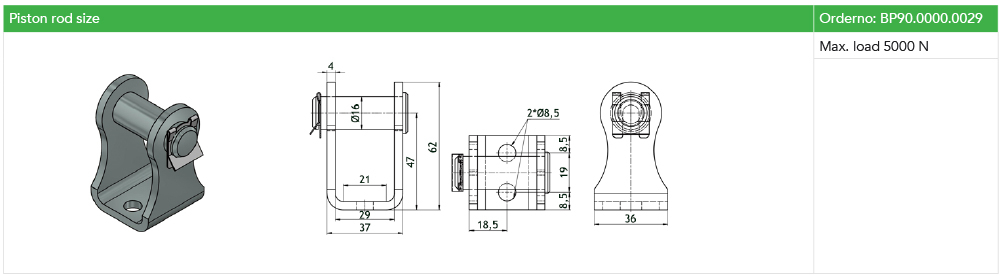

Piston rod side
PLEASE NOTE
- Never expose the actuator to hammer strike during installation or in other situations
- Retrofitted bushings should be pressed into the bracket-borings. No hammering
- Power supply without over-current protection can cause serious damage to the actuator at mechanical end-stop or when actuator is overloaded in another way
- Keep piston tube clean
- Longer cable lengths may cause voltage drop which affects the performance of the actuator
- For medical applications (IEC/EN/UL60601-1): Operating temperature +5ºC to +48ºC, Relative humidity 20% - 70% atmospheric pressure = 1atm. Connect to medically approved supply source only and according to guidelines provided with the source
- Function of the actuator is subject to the settings of the control box
- The dust and water sealing of harsh environment actuators might affect their performance
- All specifications are for 25 ºC ambient – low temperature might affect performance
- Depending on load and application, nominal and actual stroke length may differ due to internal disc springs not being fully compressed.
