Integrated controller functions:

• adjustable start ramp;
• adjustable stop ramp;
• adjustable current limit;
• industrial interface MODBUS RTU on RS485;
• internal stroke limitation;
• internal heat protection;
• plug & play solution with iConnect-Box and handset.

Specifications:

• easyE-60i: stroke +358 mm. If the stroke is greater than 400 mm: EL +25 mm (does not apply to the harsh-environment version; If the stroke is greater than 750 mm: EL + 100 mm (on request).max. load: 10.000N (depending on the ratio);
• materials: motor and actuator tube are powder coated steel (other RAL colors on request) or stainless steel; piston rod is aluminum; front and rear brackets are PA, Aluminium or stainless steel;
• power supply: 12/24VDC, see specifications
• temperature: operation: -20ºC to +70ºC; storage: -40ºC to +70ºC;
• cable: 1m, 2X0.65mm² (AWG16), Ø = 6,4 mm, black, Molex Mini-Fit Jr. 8 pin; see specifications
• bending radius: 6x cable diameter;
• max. static load: Alu/AISI: 18.100N (depending on the type of mounting);
• duty cycle: Max. 10% or 2 minutes in use followed by 18 minutes rest.

For more information on Modbus RTU please go to https://modbus.org/specs.php. MODBUS over serial line specification and implementation guide V1.0. View the possibilities for controllers and mounting parts and brackets of the easyE-60i actuator.

Gear ratio	D	E	F	G	H
EasyE-60i (12/24VDC power supply, permanent magnet motor)
Force  24V (dyn. push and pull) (N)**	1900	4300	6600	8100	10.000
Speed at maximum load (mm/s)	26	12	8	6	5

Current at maximum load: 24VDC (max 28 VDC) = 11,5A
* only 24V DC power supply
** Max. load limited for stroke length >400mm: 2000N

	EL	UL/EN60.601	Harsh environment
EasyE-60i
Gear ratio: C, D, E, F, G, H	slag +373*	+15	+25

* stroke >400mm: EL +25mm (not harsh environment-version)
* stroke >750mm: EL +100mm (on request)
* axial backlash: ±-0,5mm - Generally length tolerance ±-1mm

DIMENSIONS

Configuration P/N letter Description	SDB (S2-1) A Single/Direction/Basic	SDH (S2-1+hall) B Single/Direction/Hall	SDP (S2-1+pos. out) C Single/Direction/Position	SPP (S2-2) D Single/Direction/Position	SBS (bus-based) E Single/Bus/Status	MDO (synchronization) F Multiple/Direction/Override
1	+12/24VDC	+12/24VDC	+12/24VDC	+12/24VDC	+12/24VDC	+12/24VDC
2	PWR GND	PWR GND	PWR GND	PWR GND	PWR GND	PWR GND
3	RS485A	RS485A	RS485A	RS485A	RS485A	RS485A
4	RS485B	RS485B	RS485B	RS485B	RS485B	RS485B
5	Input: Direction IN	Input: Direction IN	Input: Direction IN	Output: Ref. 5/10VDC	Input: STOP	Input: Direction IN
6	Input: Direction OUT	Input: Direction OUT	Input: Direction OUT	Input: Position (analog)	Output: Error	Input: Direction Out
7		Output: Hall A	Output: Position (analog)	in/output: STOP/Pos.OK		Input: Override
8		Output: Hall B

Electrical wiring

Electrical data

Max. current load:

• easyE-35i: 2 ADC @ 24 VDC, 4 ADC @ 12 VDC
• easyE-50i: 8 ADC @ 24 VDC, 16 ADC @ 12 VDC
• easyE-60i: 16 ADC @ 24 VDC

Idle current: +- 10 mADC
Current trip delay: 20 ms
PWM frequency: 25 kHz
Digital inputs: ‘High’: Uin = 4 Vdc - Vsupply; ‘Low’: Uin = 0 Vdc - 1 Vdc
Supply voltage:

• 12 VDC (min 10 VDC at 1 meter cable, max 14 VDC) or
• 24 VDC (min 20 VDC at1 meter cable, max 28 VDC)

Serial data line: RS485 asynchronous, "point to point" or "multi-point", 2 wire half-duplex.
Communication: Modbus RTU
Bauds rate: 115000 bps
Com setup: 8 Bit, Parity -None, Stop bit -1

PLEASE NOTE

• power supply without over-current protection can cause serious damage to the actuator at mechanical end-stop or when actuator is overloaded in another way;
• radial forces might have an adverse affect on the performance or lead to damage of the actuator;
• keep piston tube clean;
• longer cable lengths may cause voltage drop which affects the performance of the actuator;
• for medical applications (IEC60601-1, ANSI/AAMI/ES60601-1, CAN/CSA-C22.2 No60601-1): Operating temperature +5ºC to +48ºC, Relative humidity 20% - 70% atmospheric pressure = 1atm. Connect to medically approved supply source only and according to guidelines provided with the source;
• the dust and water sealing of "harsh environment" actuators might affect their performance;
• all specifications are for 25 ºC ambient – low temperature might affect performance;
• depending on load and application, nominal and actual stroke length may differ due to internal disc springs not being fully compressed;
• the combination of gearing and stroke can cause limitations in the use of „End limit FW“ when using the S2-3 controller. See more in the datasheet for S2-3.

Accessories EasyE-i-Connect

1. Easy connection to: BUS, Handset and Power supply. This is only a connection device, without integrated intelligence.

2. i-Connect box for easy connection to BUS and Handset.

3. Easy cascading of more i-Connect boxes to synchronization up to 8 actuators. Controll option by Handset and BUS.

WEIGHT OF THE ACTUATORS

Stroke length (mm)	50	100	150	200	250	300	350	400	500	750
Weight (kg)	4,1	4,4	4,7	5	5,3	5,6	5,9	6,2	6,8	7,6

Actual weight may vary depending on model and options selected.

SPEED/FORCE

FORCE/CURRENT

---

CONNECTING PARTS "MOTOR-SIDE":

HINGE EYE



---

CONNECTING PART "PISTON ROD-SIDE":

HINGE EYE



---

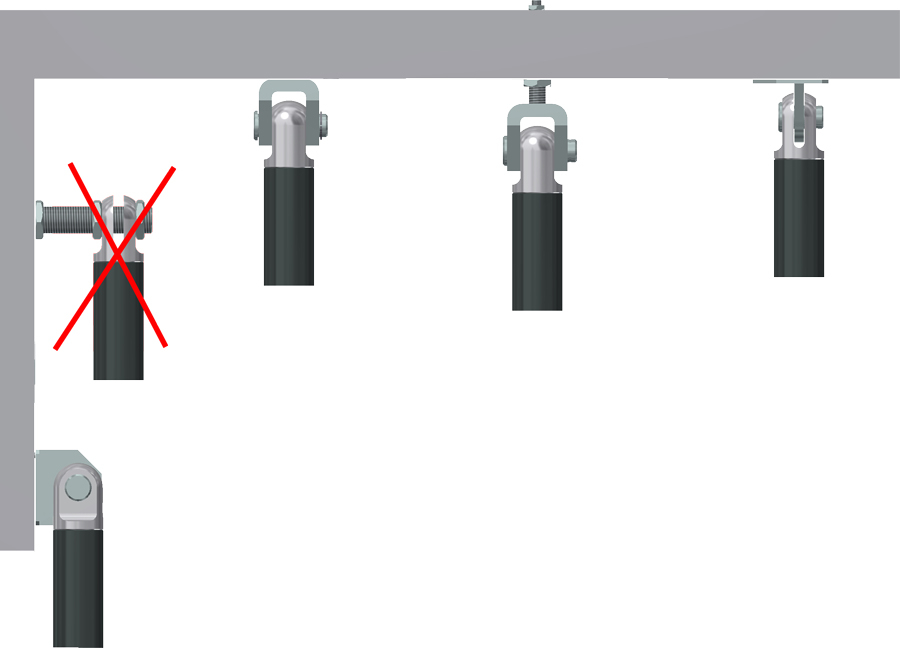

RECOMMENDED MOUNTING METHODS

• do not clamp actuators on tubing;
• always keep both brackets mounted in the same orientation and ensure to flush mount actuator;
• brackets must always be able to rotate on axels in mountings.

FOR THE FIXATION OF THE EASYE-LINE ACTUATORS WE OFFER THE FOLLOWING BRACKETS:

Motor side



Piston rod side
