Retaining cable according to DAN80

Retaining cables are used as loss-protection, for example for ball lock pins. Retaining cables are characterised by their light and elastic construction.

Material:

• cord: Nylon, white (according to MIL-C-5040 Typ III);
• ring: Stainless steel (according to DAN191C20);
• cable lug: Copper, tin-plated by galvanization (according to DIN46237 4-6);
• isolator: Nylon (polyamide), yellow.

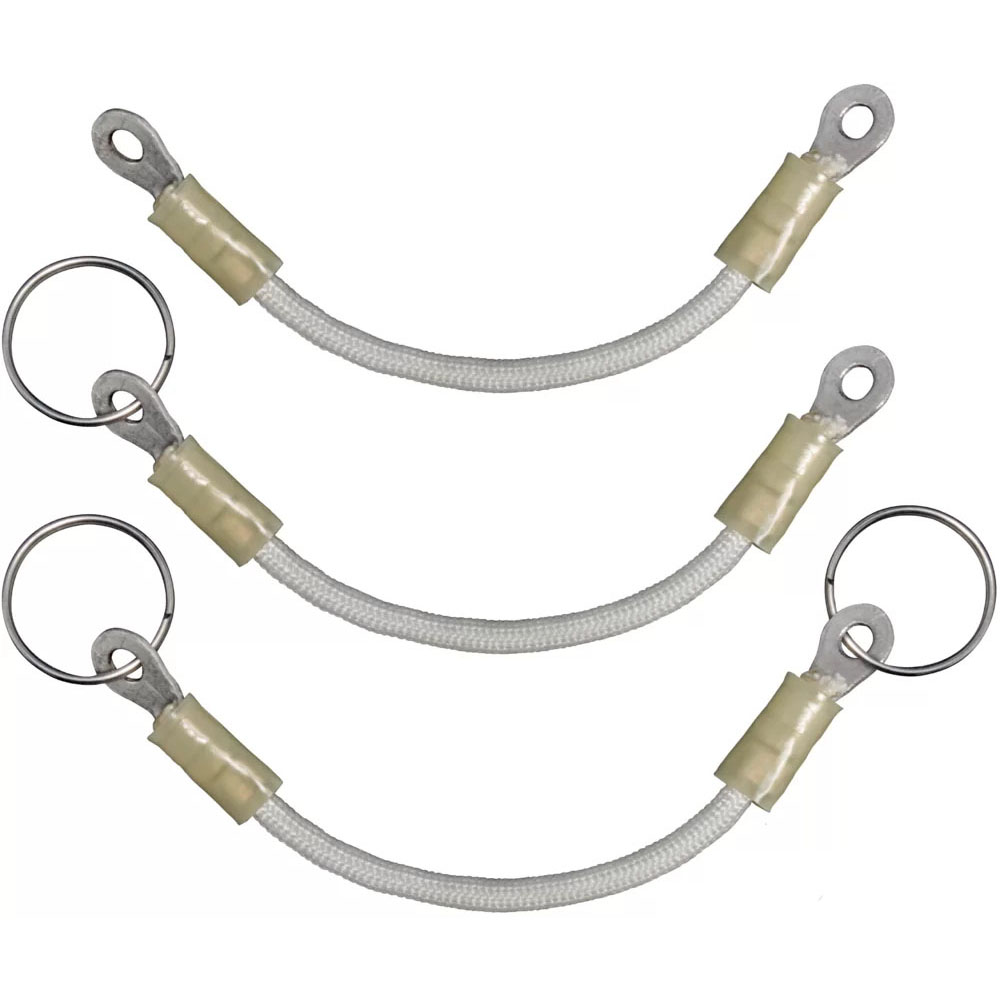

Characteristics:

• type 1 only has cable lugs;
• type 2 has 2 cable lugs and 2 rings;
• type 3 has 2 cable lugs and 1 ring;
• L has a tolerance of +5 to -3 mm.
