assembly: Attached holding clips (type 5 en 6) to theball lock pin with a soft-face mallet. Disassemble by turning upwards with a screw driver;
plastic version (type 3): cut-off projecting ends without burr after being fastened;
spiral form design (type 4) with very high effective working length;
models from type 3 and 4 correspond to MIL-DTL-83420;

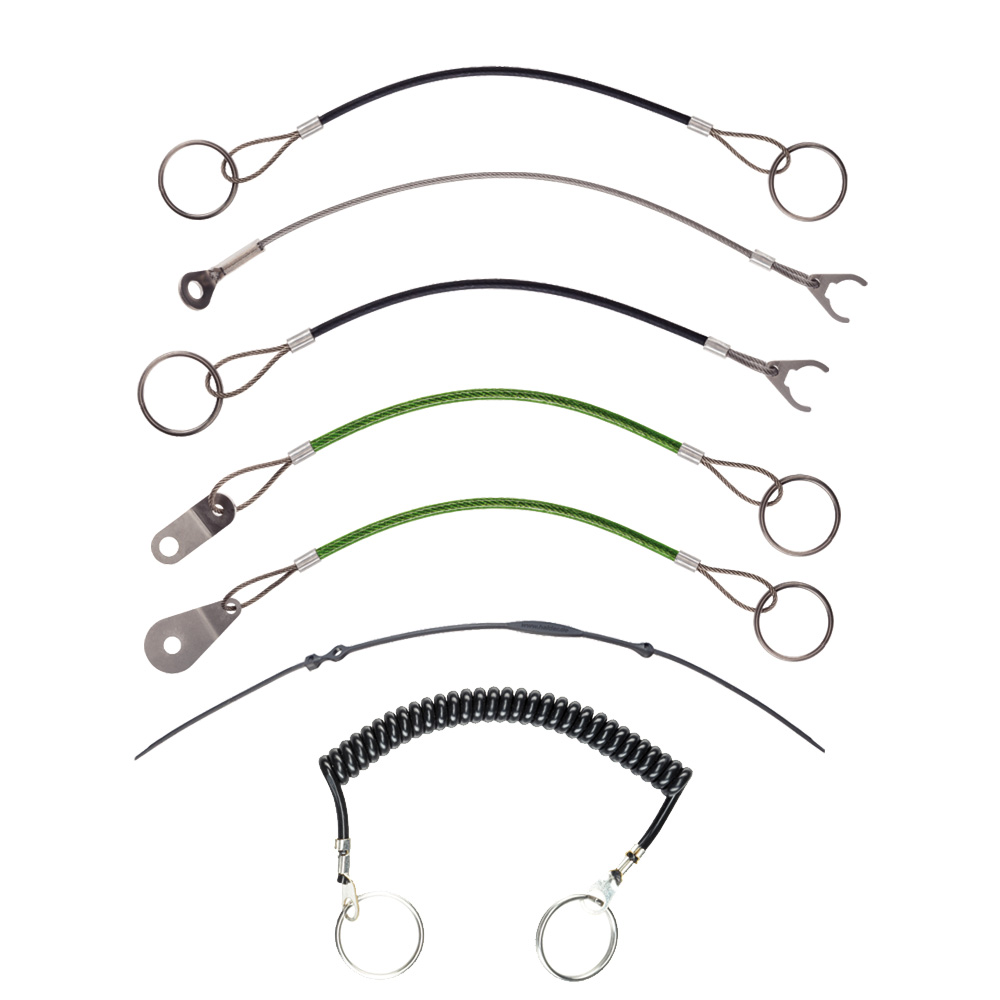

these retaining cables secure the single-acting ball lock pin AP01, AP02, AP03, AP06, AP07, AP08, AP09, AP14, AP16 and AP18, as well as clamping pin AP05, and socket pin AP10 against possible loss;
models from type 9 and 10 are only for the AP40 serie;
D1 in the table is the diameter of the ball lock pins;
* : Ø1.5 without coating; Ø2.0 with coating;
type 3 and 4: Ø3,2 with coating;
temperature range for thermoplastic products up to 80°C; versions without coating up to 250°C.
