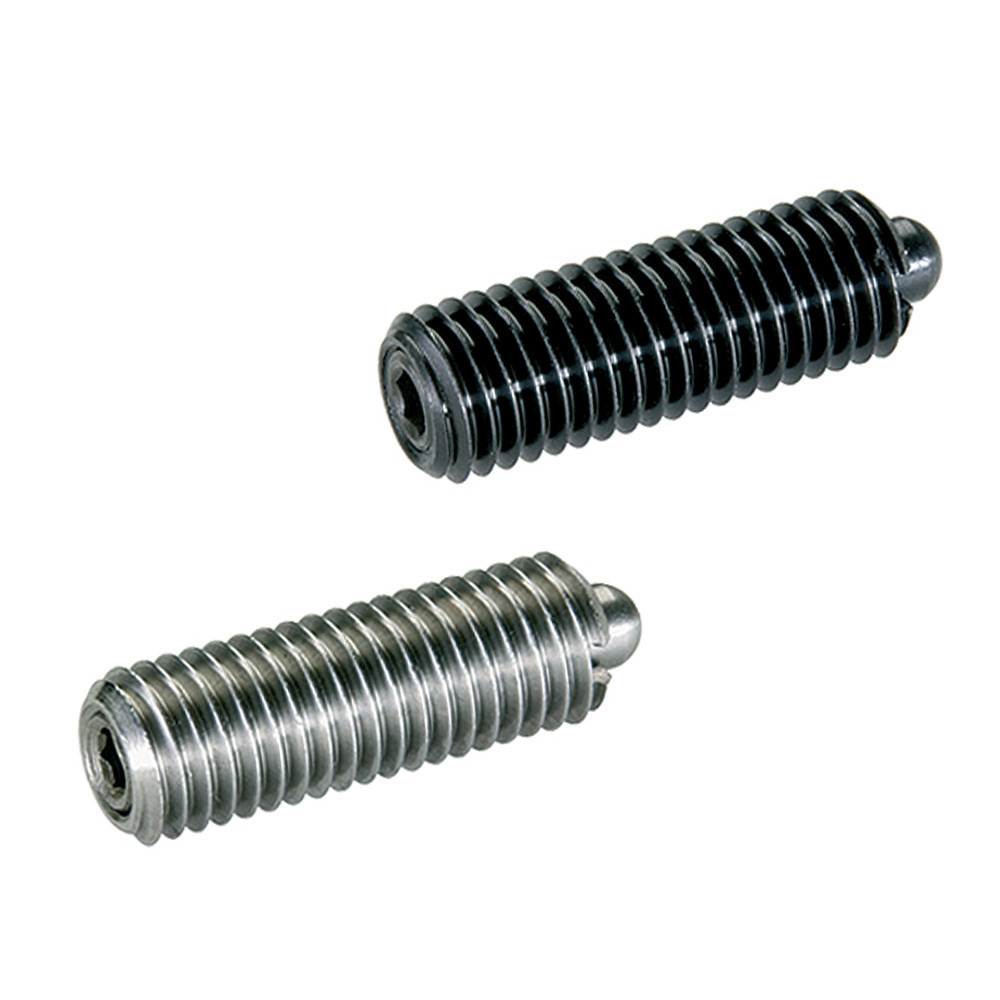

Spring plunger internal hexagon and seal
Material:
- body: free cutting steel, blackened; stainless steel 303 (1.4305);
- pin: free cutting steel, hardened, blackened; stainless steel 303 (1.4305);
- seal: NBR;
- spring: stainless steel.
Characteristics:
- assembly: spring plungers can be mounted and removed by means of the slot or internal hexagon;
- to be used for locating or for applying pressure, as a detent or for ejection. By means of the seal, liquid cannot penetrate into the spring plunger.
- deviations in dimension L, resilience and temperature resistance compared to version BA14;
- * 1: threaded end glued (see tecnical drawing);
- * 2: seal (see tecnical drawing);
- F (N) and F1 (N) in the table is the average statistical value of the spring force;
- temperature range from a minimum -30°C to a maximum of 80°C;
- type 1: standard spring load (no marking); type 2: heavy spring load (marked with two lines).
Art. Nr. |
d |
l |
Material |
2D/3D |
Order unit |
Sample |
Delivery time |
Order |
Art. Nr. |
d |
l |
Material |
2D/3D |
Order unit |
Sample |
Delivery time |
Order |
|
