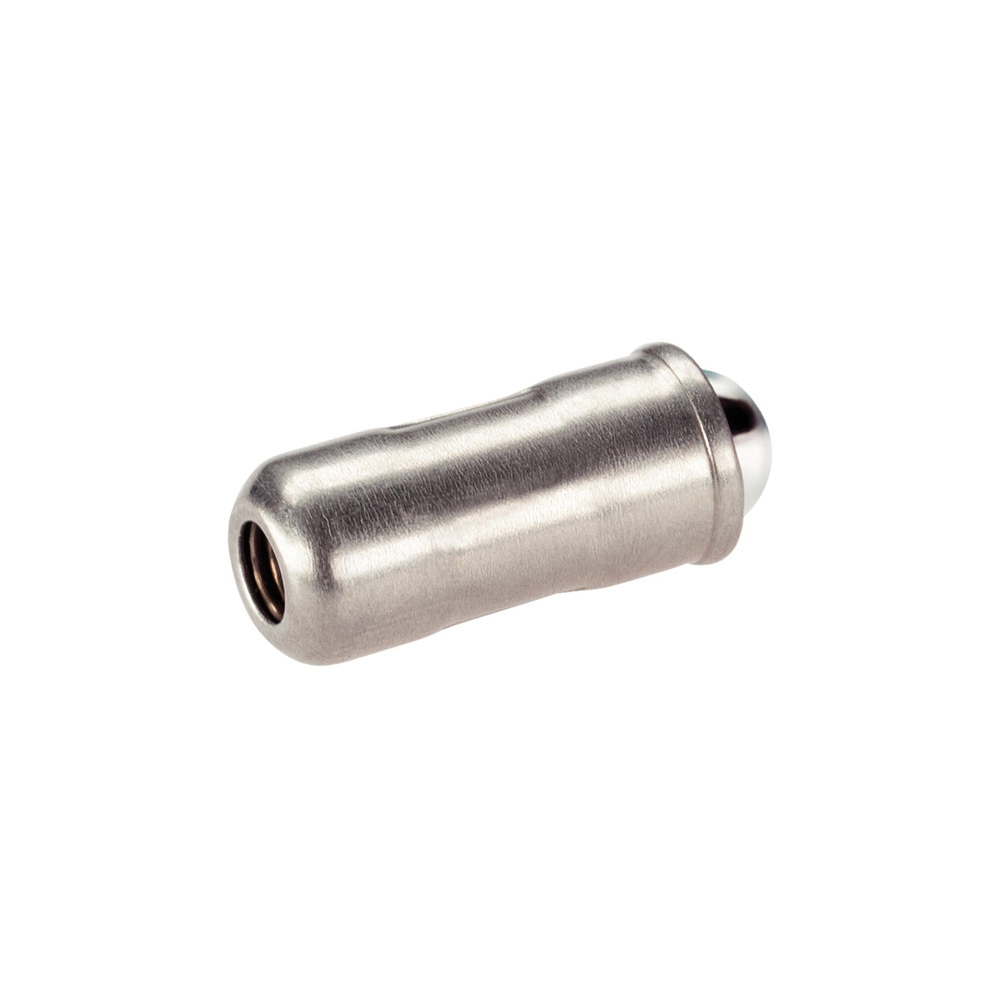

Spring plunger smooth long with collar & ball
Material:
- body: stainless steel 305 (1.4303);
- ball: stainless steel, hardened;
- spring: stainless steel.
Characteristics:
- spring plungers can be used for locating or for applying pressure, as a detent or for ejection;
- special types on request;
- spring range and forces are precisely tested;
- calculation of indexing resistance, see details in the appendix;
- bore (H7) is equal to D in the table;
- F (N) and F1 (N) in the table is the average statistical value of the spring force;
- L4 in the table is the stroke (mm);
- temperature range to a maximum of 250°C.
Art. Nr. |
d |
l |
Material |
2D/3D |
Order unit |
Sample |
Delivery time |
Order |
Art. Nr. |
d |
l |
Material |
2D/3D |
Order unit |
Sample |
Delivery time |
Order |
|
