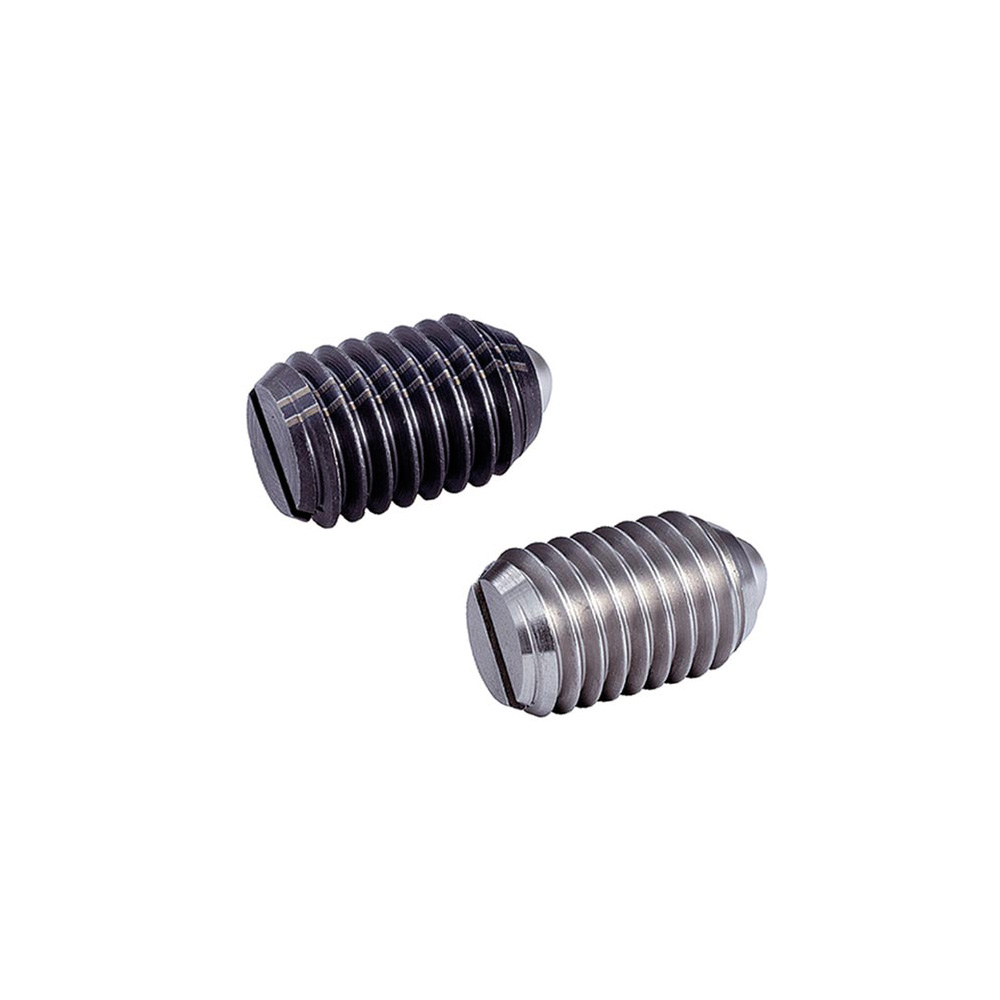

Spring plunger with ball and slot
Material:
- body: free cutting steel, blackened; stainless steel 303 (1.4305);
- ball: ball-bearing steel, hardened; stainless steel, hardened; ceramic (silicon nitride), black;
- spring: stainless steel.
Characteristics:
- ceramic ball: (in stainless steel A4 (RVS+) version) highly impact-resistant, abrasion resistant, antimagnetic, electrically isolating;
- to be used for locating or for applying pressure, as a detent or for ejection;
- calculation of indexing resistance, see details at the start of the section;
- F (N) and F1 (N) in the table is the average statistical value of the spring force;
- temperature range to a maximum of 250°C;
- type 1: standard spring load (no marking); type 2: heavy spring load (marked with two lines);
- the version from stainless steel A4 guarantees the highest corrosion protection.
Special requests:
Special types on request.
Art. Nr. |
d |
l |
Material |
2D/3D |
Order unit |
Sample |
Delivery time |
Order |
Art. Nr. |
d |
l |
Material |
2D/3D |
Order unit |
Sample |
Delivery time |
Order |
|
