to be used for positioning, indexing, locking, latching as well as ejecting;
to be used for locating or for applying pressure, as a detent or for ejection;
You also keep in mind the technical data as an appendix at the end of the documentation;
thread lock: Polyamide spot coating;
calculation of indexing resistance, see details at the start of the section;
F and F1 in the table is the average statistical value of the spring force in pounds (lb);
temperature range from a minimum of -22°F to a maximum of 482°F; temperature range for versions with thread lock (type 2, 4 en 6) to a maximum of 194°F;

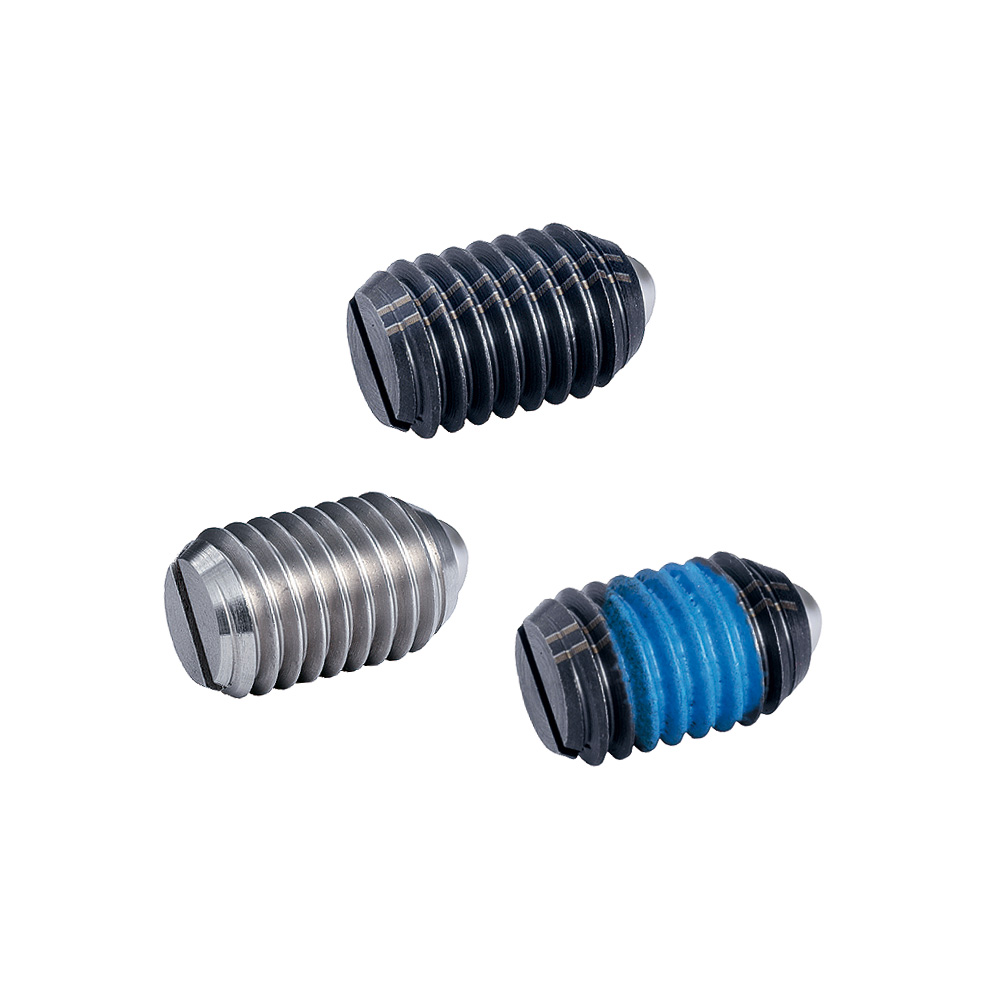

type 1: light spring load (marked with 1 line), without thread lock; type 2: light spring load (marked with 1 line), with thread lock;
type 3: standard spring load (no marking), without thread lock; type 4: standard spring load (no marking), with thread lock;
type 5: heavy spring load (marked with two lines), without thread lock; type 6: heavy spring load (marked with two lines), with thread lock.
