Recently BIBUS added a new product to the range of lifting pins, index plungers with rapid locking head are now available through our webshop. By combining the principle of a conventional index plunger pin with a self-clamping function, this lock pin is ideal for applications where many repetitive connections are made, such as the lighting sector, machine construction and for stage building. This article provides more background information on this innovative mounting solution from Halder.
Fixing in blind holes

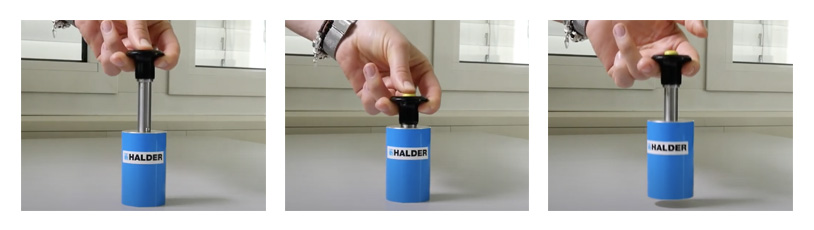

The index plungers with rapid locking head AP29 can easily be clamped in blind holes (H11) thanks to the self-clamping function, without the need for additional positioning sleeves. This is made possible by the built-in clamping mechanism. By pressing the button on top of the index plunger, the pin is released to be positioned differently.
This makes mounting or locking of parts easier. A good practical example of index plungers can be seen in this article on the application of indexing bolts and index plungers in lifting equipment. The AP29 index plunger pin is corrosion resistant, extremely durable and offers the highest protection against wear. This makes the AP29 ideal for connections that are made repeatedly. In addition, the mounting cable AP12 can be used to expand the mounting options. This means that BIBUS can always offer you a suitable solution for your personal situation.
Material and versions
The pin is available in stainless steel 1.4305 and stainless steel 1.542. precipitation hardened pin of (stainless steel 1.542) is ideal under extreme loads and offers optimum protection against wear. The pin is operated using the black (RAL 9005) aluminum handle and the recognizable yellow push button. Special versions are available on request. Please feel free to contact the BIBUS team for this.
Advantages of index plungers
The use of plug-in pins offers several advantages. This makes them easy and quick to disassemble. The corrosion resistance of the pins ensures a very long service life, making them a good solution for frequently repeating joints. In addition, index plungers are very easy to operate, but the product does not lose any safety or security.
Order index plungers with rapid locking head
Looking to find out more on the AP29? The mechanical components from our range are easy to order through our webshop. In addition to index plungers, you will find more than 30,000 technical solutions here. BIBUS is your one-stop shop for mechanical components and offers tailor-made advice to find the most suitable solution.
